Skeletal Trailer

Video of container chassis trailer

1. What is a skeletal trailer, and what is its primary purpose?

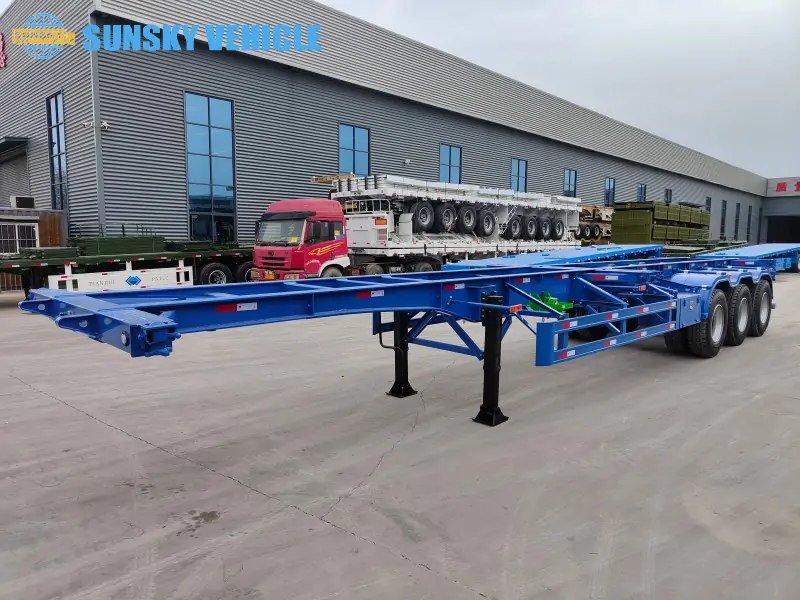

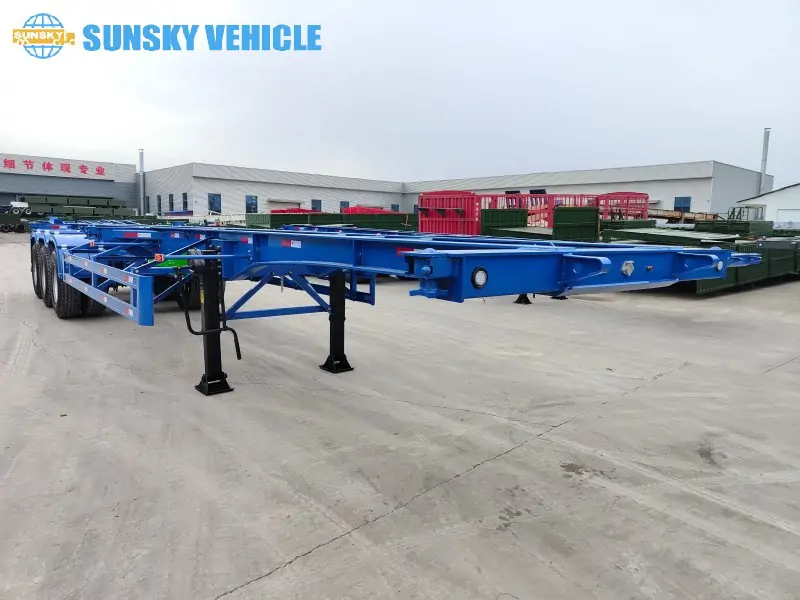

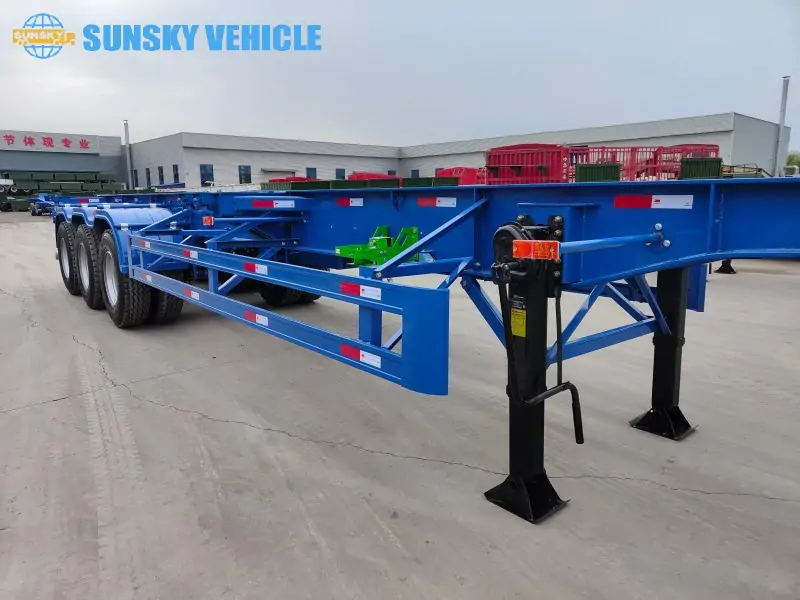

A skeletal trailer, also widely known as a container chassis or intermodal chassis, is a specialized type of semi-trailer designed specifically for the transport of ISO shipping containers. Its name comes from its minimalist, skeletal frame—it consists of a steel frame, axles, and a suspension system but lacks a conventional cargo deck. The primary purpose of a skeletal trailer is to securely and efficiently haul standardized shipping containers of various sizes (e.g., 20ft, 40ft, 45ft) between different intermodal hubs such as ports, rail yards, and warehouses. By using a minimalist design, it is optimized to reduce tare weight, allowing for maximum payload capacity and improved fuel efficiency, making it the most cost-effective and secure solution for container transport.

2. What are the key advantages of using a skeletal trailer for container transport?

Using a skeletal trailer for container transport offers several key advantages over other trailer types. First and foremost is payload optimization. Due to its lightweight, stripped-down design, a skeletal trailer has a low tare weight, allowing you to carry a heavier container legally, which is crucial for maximizing efficiency and profitability. Second is security. The trailer is equipped with specialized twist locks at specific positions that fit directly into the corners of an ISO container, creating an extremely secure and rigid connection. This prevents the container from shifting during transit, enhancing safety. Third is efficiency. The design is perfectly suited for quick loading and unloading at ports and rail terminals, as it is engineered to handle the container’s weight directly, without needing a flatbed or other deck. This streamlined operation makes the skeletal trailer an indispensable tool for fast-paced logistics and intermodal chassis operations.

3. How do skeletal trailers accommodate different container sizes like 20ft, 40ft, and 45ft?

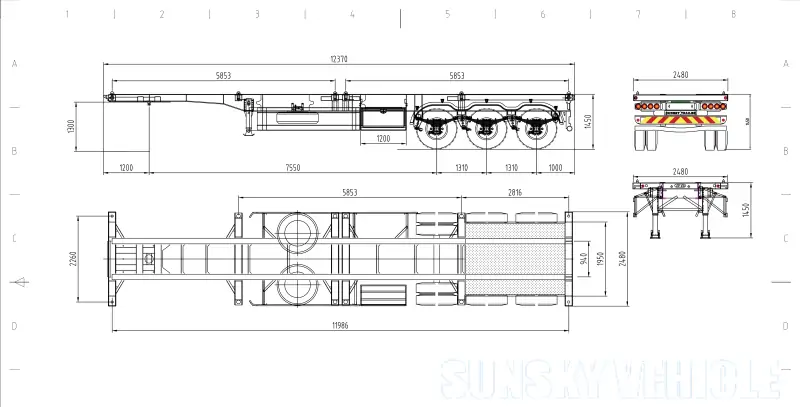

Skeletal trailers, and the broader category of container chassis, are engineered with a versatile design to handle a range of ISO container sizes. A standard 40ft skeletal trailer will have twist locks placed to secure a single 40ft container. However, these trailers often have additional twist lock positions located in the middle of the frame to accommodate a single 20ft container. For transporting two 20ft containers, some container skeletal trailers are designed with multiple sets of locks to securely hold both. For longer 45ft containers, there are specialized extendable skeletal trailers that can be mechanically lengthened to the required size and then retracted for better maneuverability when hauling shorter containers or when empty. This adaptability ensures that a single type of container transport trailer can serve a variety of logistical needs, making it a highly flexible asset for any fleet involved in container hauling.

4. What are the essential safety features of a skeletal trailer?

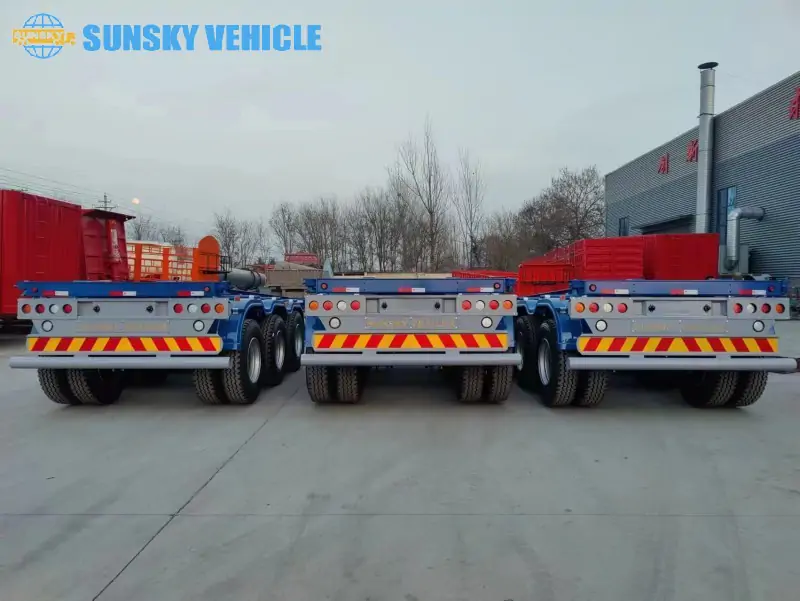

The safety of a skeletal trailer is paramount, and several key features are integrated to ensure secure operation. The most critical features are the twist locks. These heavy-duty, ISO-compliant locking mechanisms engage with the container’s corner castings to prevent any longitudinal or lateral movement, even under extreme road conditions. The trailer’s frame itself is built from high-tensile steel, providing exceptional structural integrity and preventing bending or cracking under heavy loads. All skeletal trailers must be equipped with DOT-compliant braking systems, including ABS (Anti-lock Braking System), which prevents wheel lockup during hard braking and maintains vehicle control. A robust lighting system with sealed LED lights is also essential for maximum visibility in all weather conditions. Lastly, proper axle placement and kingpin settings are engineered to optimize weight distribution, providing stability and preventing rollover risk. These features work in concert to make the skeletal trailer a safe and reliable choice for intermodal transport.
