Description
A hydraulic modular trailer is a series of multi-axle platforms that can be connected side-by-side or end-to-end to create a custom transport solution. This modular design allows a single trailer to adapt its length, width, and axle count to perfectly match the size and weight of oversized cargo, from massive industrial components to bridge sections. Each axle line features a powerful hydraulic suspension system that ensures even weight distribution, allowing the trailer to navigate challenging terrains with stability and control.
Modular Trailer Specifications
| WHEELBASE | 1550 mm |
| WHEEL TRACK | 745/1820 mm |
| TIRE QUANTITY | 8 PCS PER LINE |
| TIRE SIZE | 215/75R17.5 |
| RIM SIZE | 6.00-17.5 |
| WIDTH | 2990 mm |
| HEIGHT | 1070 mm |
| SUSPENSION LIFTING | ±300 mm |
| STEERING SYSTEM | AUTO AND MANUAL OPERATION |
| MATERIAL OF CHASSIS | Q550D |
| MAX STEERING DEGREE | 55° |
| TARE WEIGHT PER LINE | 3.7 TON |
| PAYLOAD PER LINE | 22.5 TON (18 km/h) |

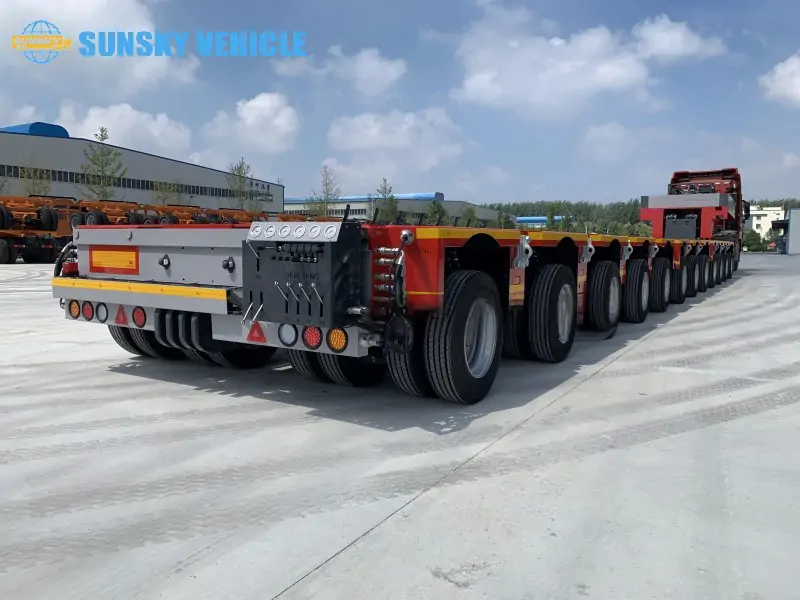

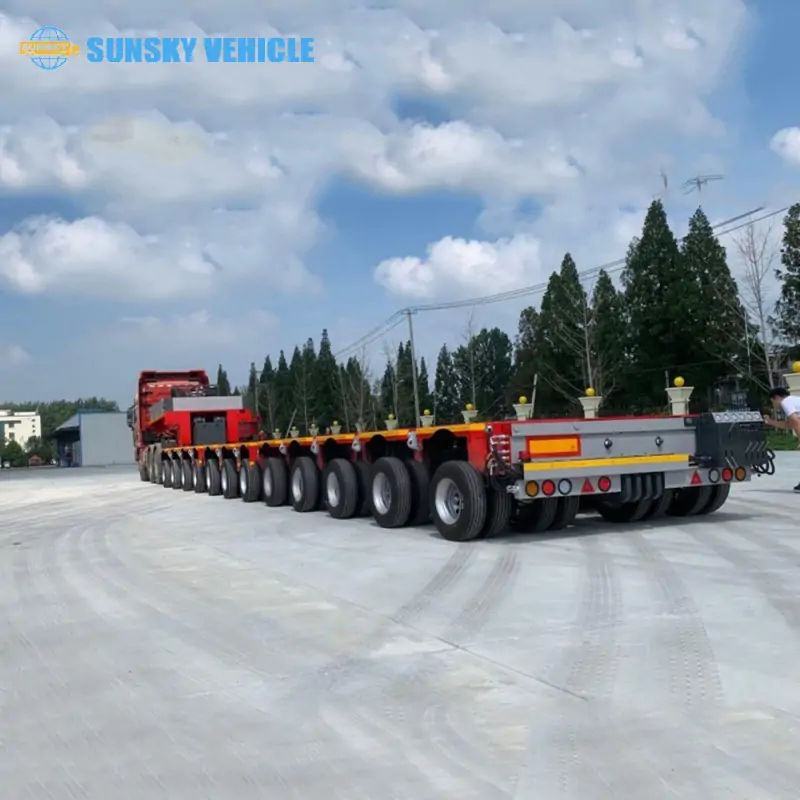

Modular Trailer Image

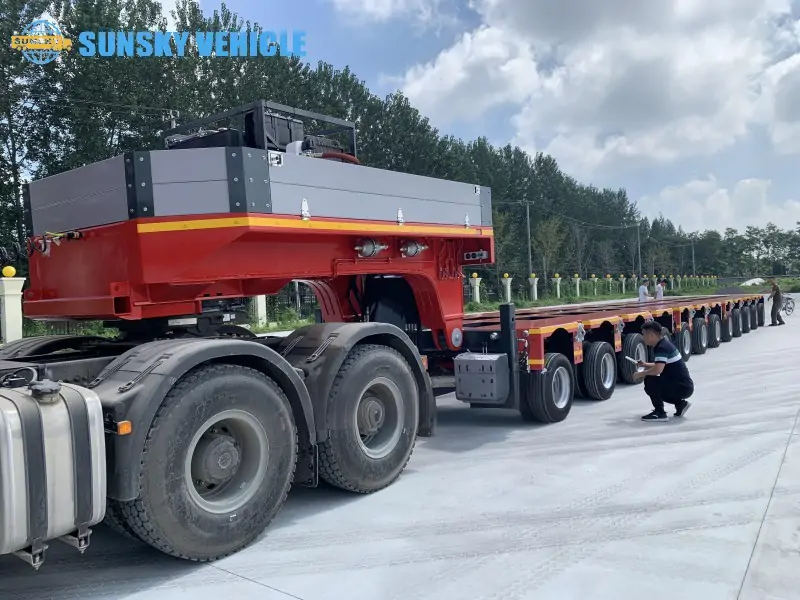

Modular Trailer side view

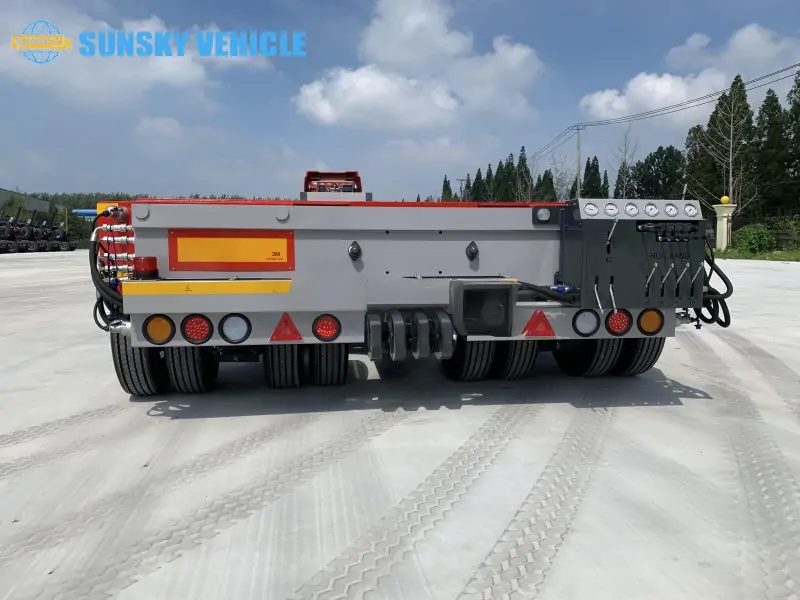

Modular Trailer tail structure

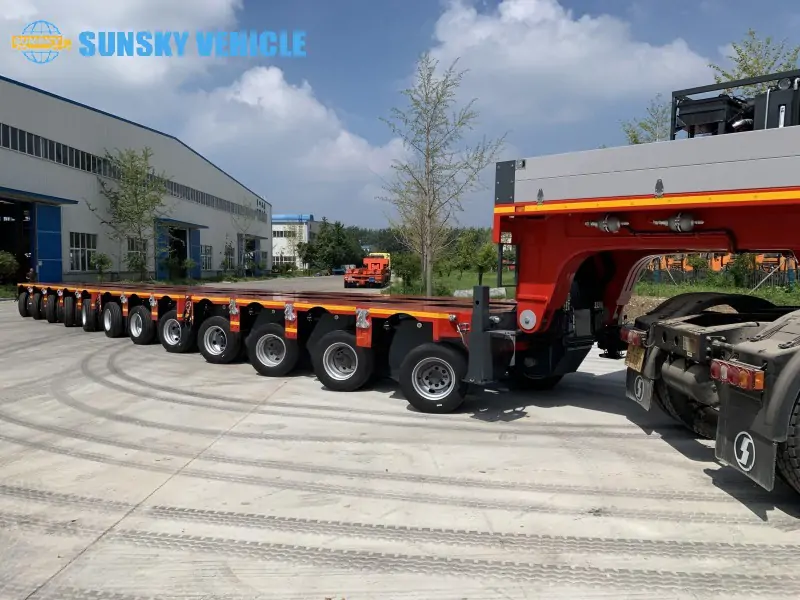

Modular Trailer tire
Why Choose Our Modular Trailer?
Unmatched Engineering & Performance
Our heavy-duty modular trailers are built to a higher standard. The main chassis is constructed from Q550D high-strength steel, providing a robust foundation that can withstand incredible stress. We use a hydraulically controlled steering system with a maximum steering degree of 55°, allowing for precise maneuvering in tight spaces, which is a critical advantage for complex hauls. With a suspension lifting range of ±300 mm, our trailers can navigate uneven surfaces and adjust deck height for easy loading and unloading.
Reliable Components for Secure Transport
We understand that the weakest link can compromise the entire operation. That’s why our hydraulic modular trailers are equipped with top-tier components from leading global brands. Our hydraulic ball valves are from STAUFF, Germany, and the fast couplings are from Faster, Italy. The multi-way valve is from Bondioli & Pavesi, Italy, and the hydraulic pipes are from Eton, USA. This commitment to quality ensures every part of the trailer performs flawlessly, providing a safe and reliable solution for your most valuable cargo.
Customizable Configurations for Any Load
The true power of our modular trailer system lies in its adaptability. We offer a range of standard modules that can be combined to meet your specific payload requirements. For example, a single 3-axle unit can carry a gross weight of up to 108 tons at 5 km/h. By combining four axle lines, the gross weight increases to 144 tons, while a 5-axle unit can handle up to 180 tons. This flexibility ensures that you have the right capacity for any project, big or small. Our hydraulic gooseneck can handle a payload from 20 to 48 tons, providing a powerful link to your prime mover.
Ready for Your Next Heavy-Haul Challenge?
Don’t let complex logistics slow you down. Our modular trailers are the answer to your oversized and heavy-haul challenges. From wind turbine components and bridge sections to industrial machinery, we have the engineering expertise and high-quality equipment to get your cargo to its destination safely and on schedule.
Contact our team today to discuss your specific transport needs and get a custom quote.
