Description

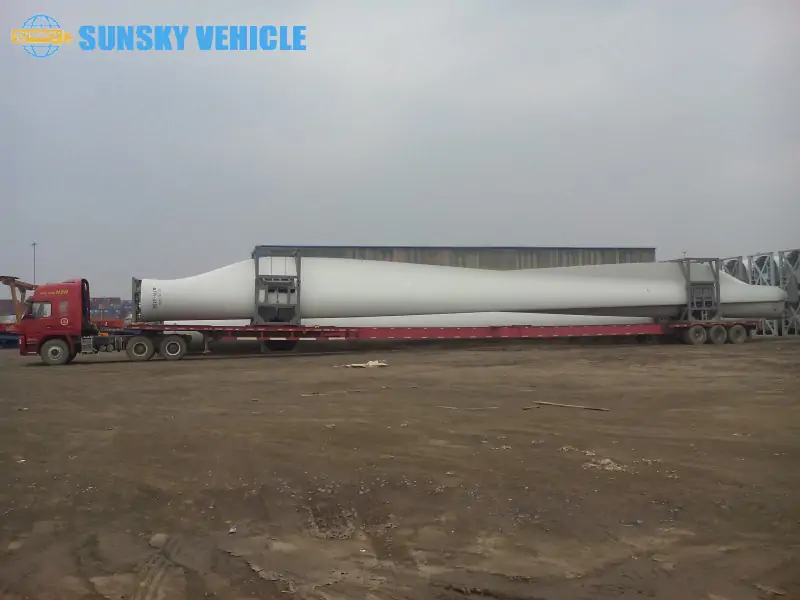

Our wind blade trailers are expertly engineered for the secure and efficient transport of oversized wind turbine blades. With a unique telescopic design, our trailers can extend to a staggering 62,000mm to accommodate any blade length, providing a reliable and safe solution for your most challenging logistics needs.
Wind Blade Trailer Specifications
| Type | 62m extended flatbed trailer |
| Overall size | 19850*2700*1640mm (3-section telescopic beam, could extend to 62000mm) |
| Curb weight | Approx. 28,000kg |
| Payload | 80,000 kg |
| Chassis | Heavy duty and extra durability designed; opting for high tensile steel AG700, welded by the automatic submerged-arc process. Middle flange height 650mm. |
| Floor | 3mm checkered plate |
| Landing gear | 28T two-speed, manual operating, JOST |
| Kingpin | 3.5’’ bolt-in kingpin. JOST |
| painting | Complete chassis sandblasting to clean rust. I applied a coat of anticorrosive primer and 2 coats of final PU paint. |
| Vehicular applications | Wind blade transport |
| suspension | Mechanical suspension |
| Leaf spring | Mechanical 10-piece thickened leaf spring |
| axle | 16T, 6 units |
| Brake system | Double line brake system; |
| Brake chamber | 12 chambers |
| Tire & rim | 10.00R20 24 units |
Start your project today and get a high-performance semi-trailer solution tailored specifically to your unique needs.Robust and Durable, Achieve Exceptional Transport

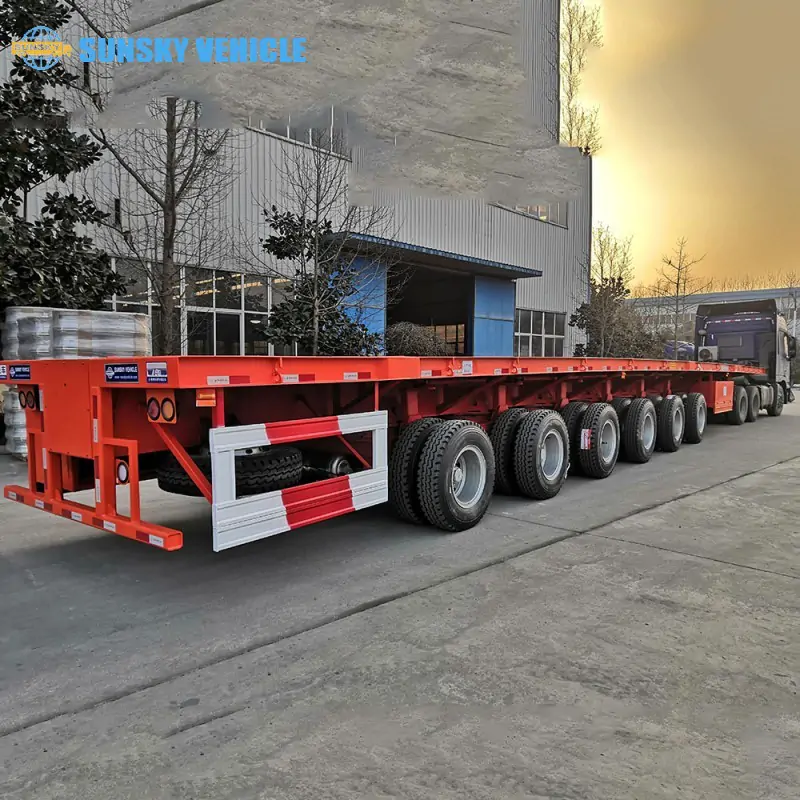

Wind Blade Trailer Image

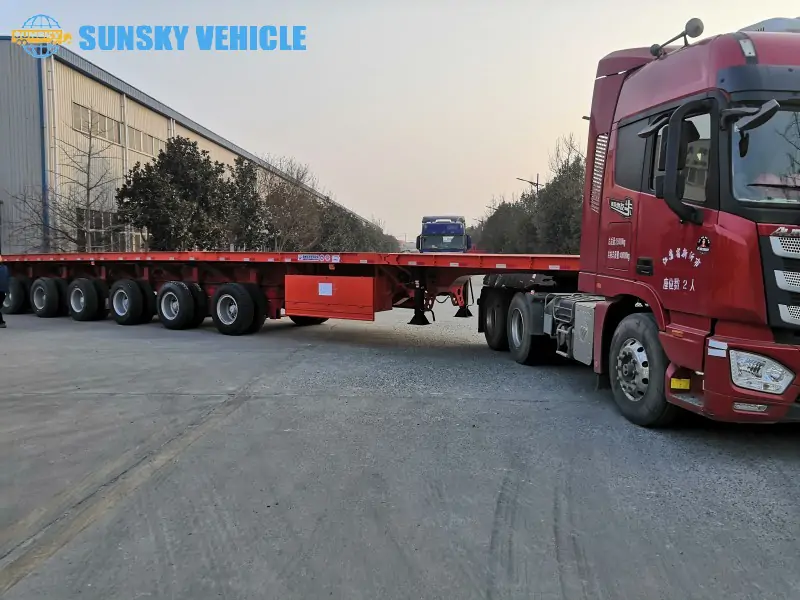

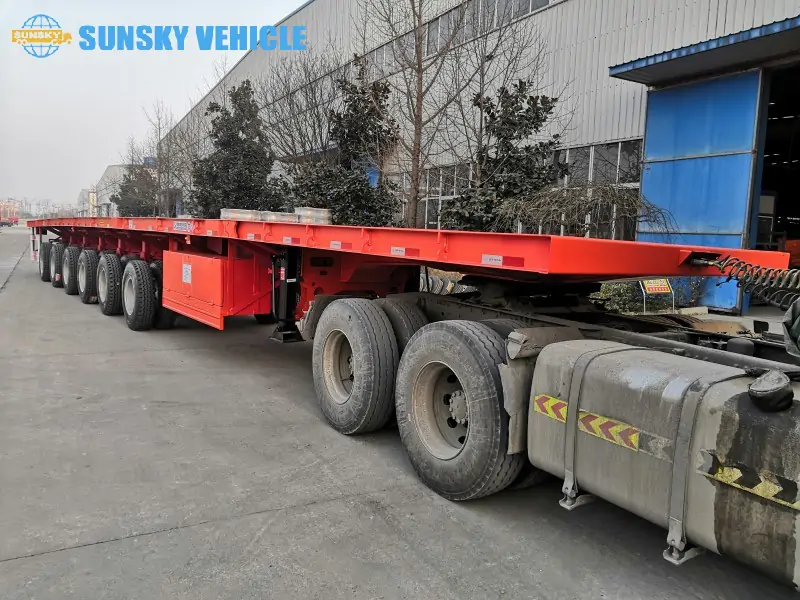

Wind Blade Trailer complete trailer

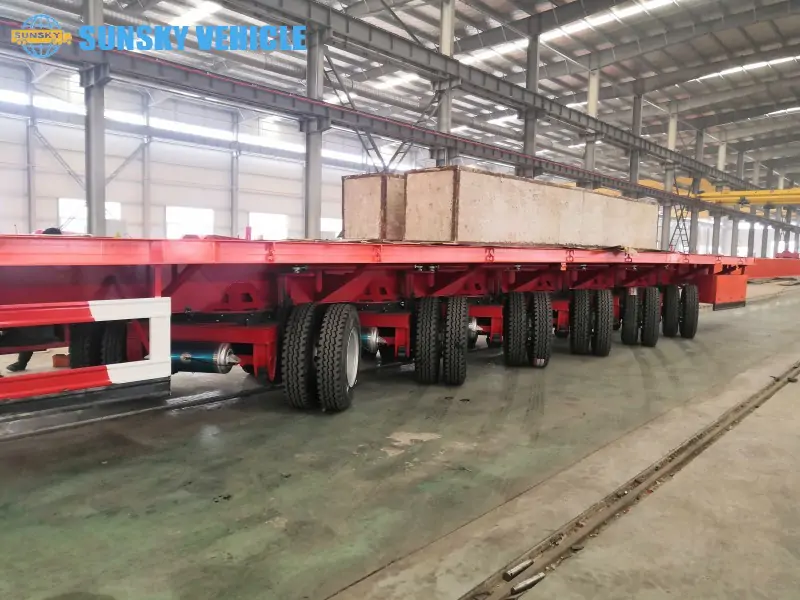

Wind Blade Trailer tire
Wind Blade Trailer tire
Why Choose Our Wind Blade Trailer?
Engineered for Extreme Length & Durability
Transporting massive wind turbine blades demands a trailer that is not only long but also exceptionally strong. Our extendable wind blade trailers are purpose-built for this task. The chassis is designed with heavy-duty durability in mind, using AG700 high tensile steel and welded by an automatic submerged-arc process. This robust foundation ensures the trailer can handle the immense payload of up to 80,000 kg and the dynamic stresses of long-haul transport.
Reliable Components for Unmatched Performance
Safety and reliability are our top priorities. That’s why we equip our wind turbine trailers with world-class components. The trailer features a 6-unit, 16T axle configuration and a mechanical suspension system with 10 pieces of thickened leaf springs for superior stability and load support. For safe and reliable operation, our trailers are fitted with JOST kingpins and two-speed landing gear. The double-line brake system and 12 brake chambers provide exceptional stopping power, giving you full control over the massive load.
Why Our Wind Blade Trailer is the Right Choice
Navigating challenging terrains and long routes with delicate wind blades requires specialized design. Our telescopic wind blade trailer features a hydraulic steering system that offers precise control, making it easier to maneuver through tight turns. The chassis is meticulously prepared with a sandblasting process to remove rust, followed by a coat of anti-corrosive primer and two coats of final PU paint. This attention to detail protects your investment and ensures the trailer remains in top condition for years to come.
Ready for Your Next Wind Energy Project?
Don’t let logistics challenges slow down your wind energy projects. Our wind blade trailers are designed to deliver your components safely, efficiently, and on schedule.
Contact our team today to get a custom quote and discover how our specialized wind turbine blade carriers can solve your transport needs.
