Description
Engineered for robust medium-duty logistics, our single axle trailer with side walls combines the superior 10,000 kg payload capacity of a semi-trailer with the simplified maneuverability of a single-axle design. Built with a high-grade FUWA 13T axle and durable spring suspension, this trailer is your cost-effective solution for hauling bulk cargo, construction materials, and farm supplies without the complexity of a full multi-axle setup.

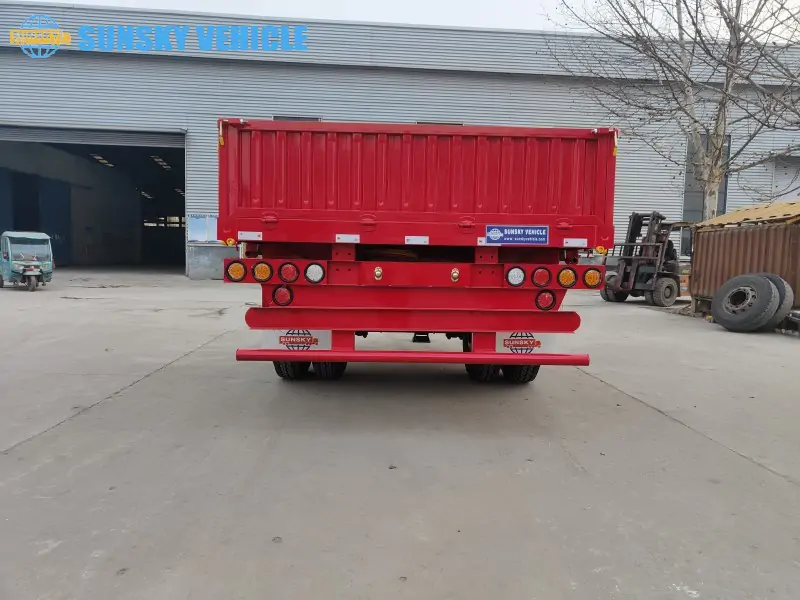

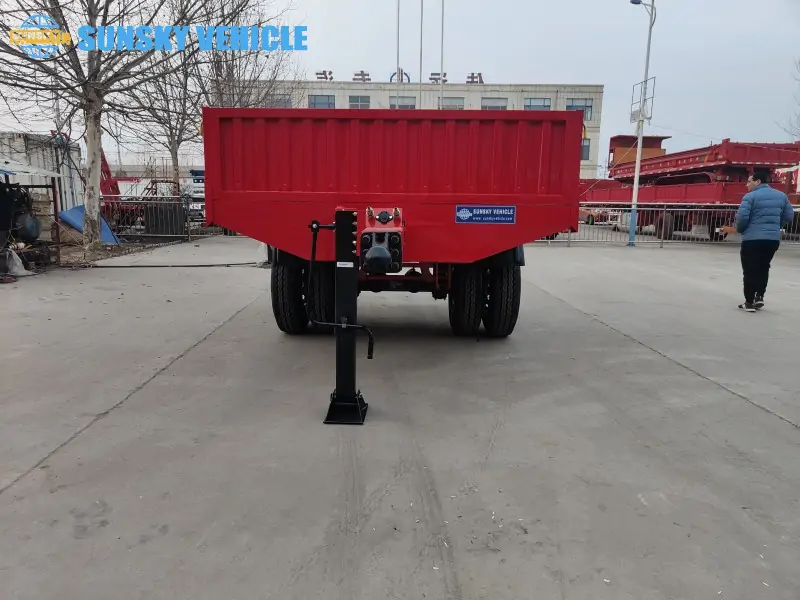

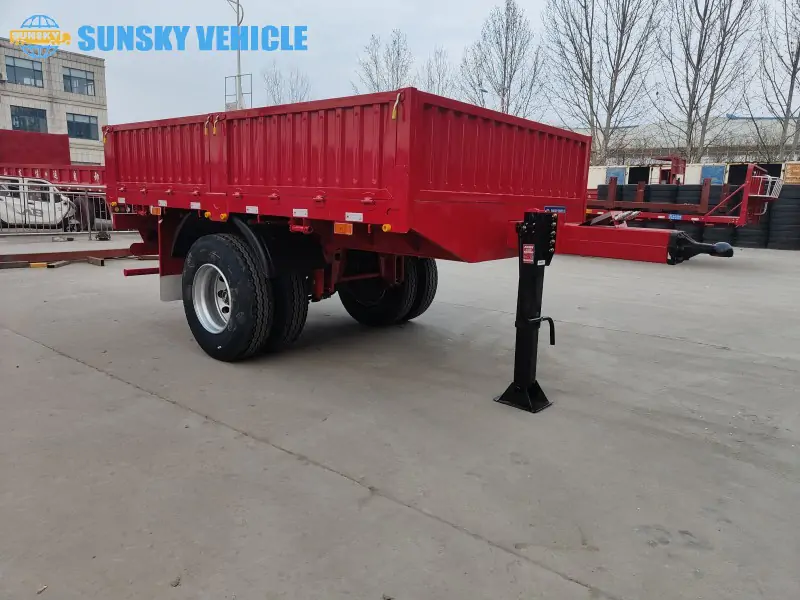

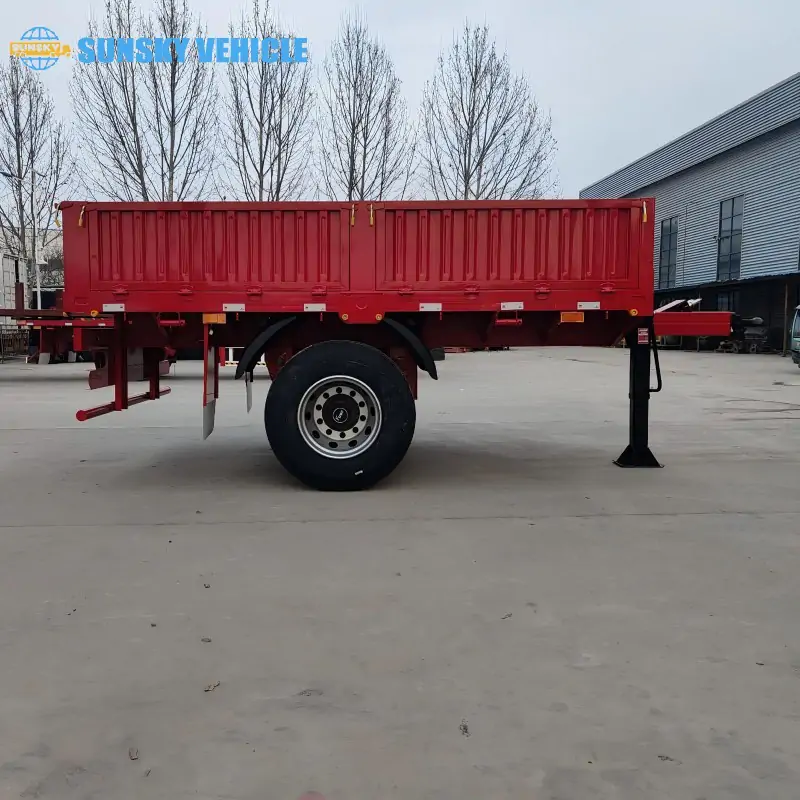

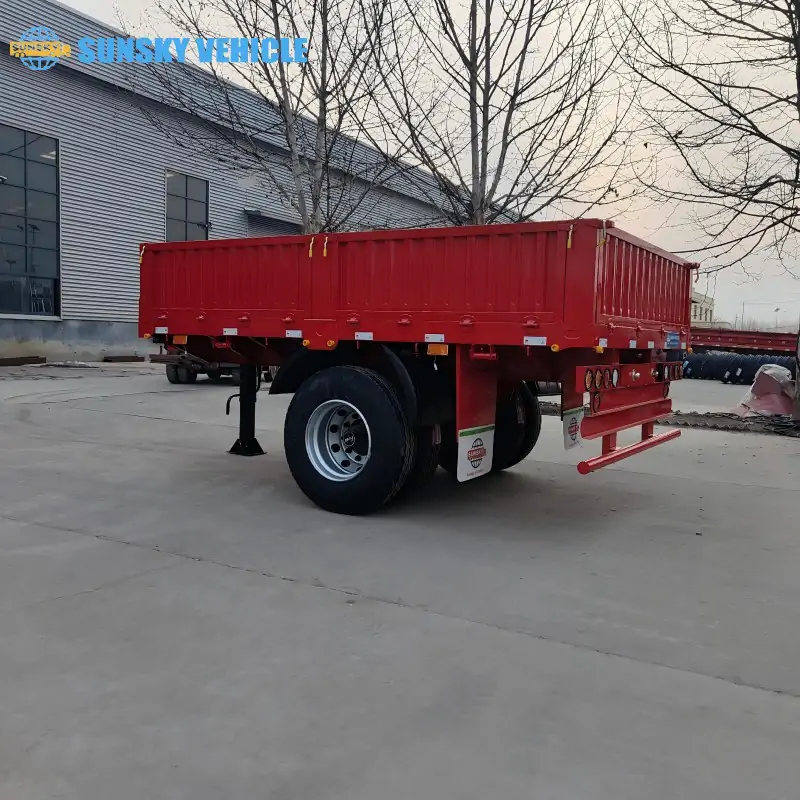

Single Axle Cargo Trailer Image
Single Axle Trailer with Side Walls specification
| Feature: | Carry Bulk cargo |
| Dimension(L*W*H): | 5360*2500*2000mm |
| The Height of Side Wall | 600mm(as requirement) |
| No. of axle: | 1 |
| Payload(kgs): | 10000 |
| Tare weight(kgs): | 2400 |
| Landing gear: | 19” |
| Tire size: | 12R22.5 |
| Rim size: | 9.00*22.5 |
| Axle: | FUWA brand 13T |
| Suspension | Spring suspension |
| Hook | With hook on the front of trailer |
The Ultimate Single Axle Utility Trailer: Bridging Payload and Agility
For many contractors, small fleet owners, and remote logistics operations, the challenge lies in finding a trailer that offers sufficient payload capacity without the complexity and regulatory burdens of a tri-axle semi-trailer. Our unit is designed precisely to fill this gap. This single axle utility trailer features a massive 10,000 kg payload capacity, allowing you to move heavy bulk cargo—from gravel and steel components to dense agricultural products—in one efficient trip. The specialized spring suspension ensures stable handling even when fully loaded, providing performance that far exceeds standard light-duty utility models.
Unmatched Reliability: Premium Running Gear Components
A trailer’s durability is defined by its core running components. We do not compromise on quality. Unlike general-purpose trailers, our single axle model is fortified with industry-leading parts:
- Axle Strength: Equipped with the renowned FUWA brand 13T axle, offering reliability and longevity far exceeding the trailer’s actual payload requirement. This over-engineered approach minimizes maintenance headaches and downtime.
- Tire and Rim: Optimized for heavy loads, the trailer runs on 12R22.5 tires and 9.00*22.5 rims, providing excellent road contact and resistance to wear during heavy hauling.
- Landing Gear and Hook: Fitted with a robust 19” landing gear for stable parking and easy coupling/uncoupling, plus a versatile hook on the front for flexible towing applications.
Versatile Cargo Trailer Design with Secure Side Walls
Designed to maximize cargo security and ease of use, the dimensions of the cargo box are optimized for medium-sized loads.
- Optimized Dimensions: The main cargo box measures 5360mm in length, 2500mm in width, and 2000mm in height.
- Flexible Side Walls: The standard side wall height is 600mm, perfect for containing loose items. Crucially, the side wall height is customizable based on your specific operational needs, whether you are carrying dense construction supplies or light agricultural feed. The robust design ensures your single axle cargo trailer safely contains the load from pickup to drop-off.
- Low Tare Weight Advantage: With a relatively light tare weight of 2,400 kg, more of your Gross Vehicle Mass (GVM) is dedicated to revenue-generating payload, maximizing the cost-efficiency of every journey.
Request a Custom Quote for Your 10,000kg Payload Solution
If you are currently struggling with small utility trailers that limit your payload, or find multi-axle trailers too cumbersome and expensive for your regional transport needs, our 10,000 kg single axle trailer with side walls is the perfect fit.
SUNSKY VEHICLE specializes in providing custom solutions built with premium components like the FUWA axle. Contact our sales team today to discuss your specific bulk cargo requirements and receive a customized quote on this high-performance, agile hauling solution.
