Description
What is a Single Axle Dangler Trailer?
A single axle dangler trailer (also called a one-axle drawbar trailer) is a compact, cost-efficient full trailer designed to carry bulk cargo. Its simple single-axle layout keeps tare weight low while maximizing payload — making it ideal for short-haul bulk deliveries, regional logistics, and markets where maneuverability and low cost are key.

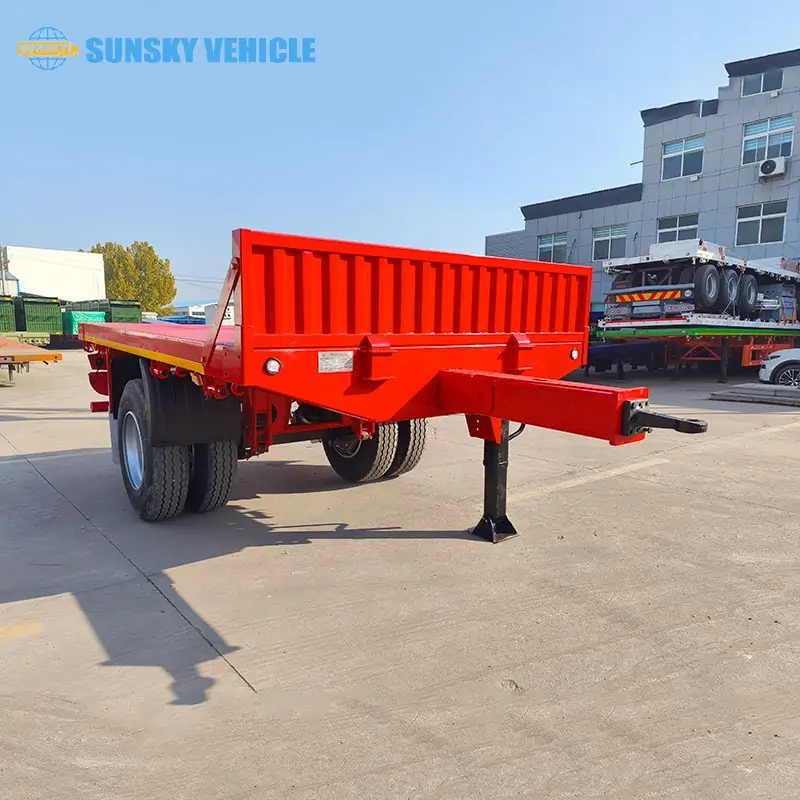

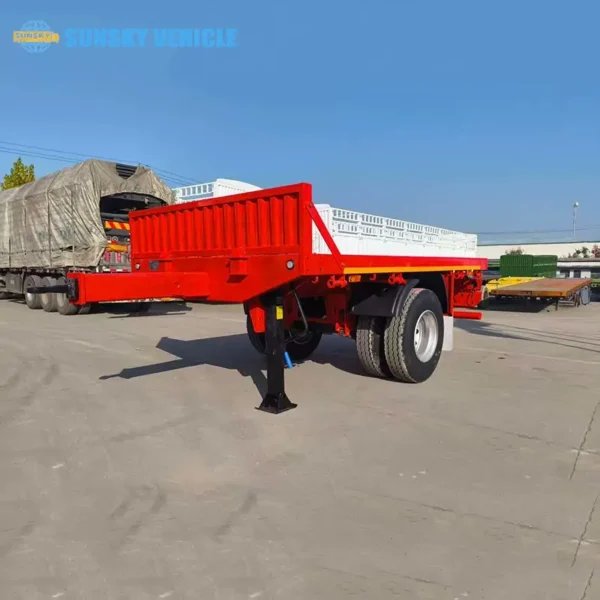

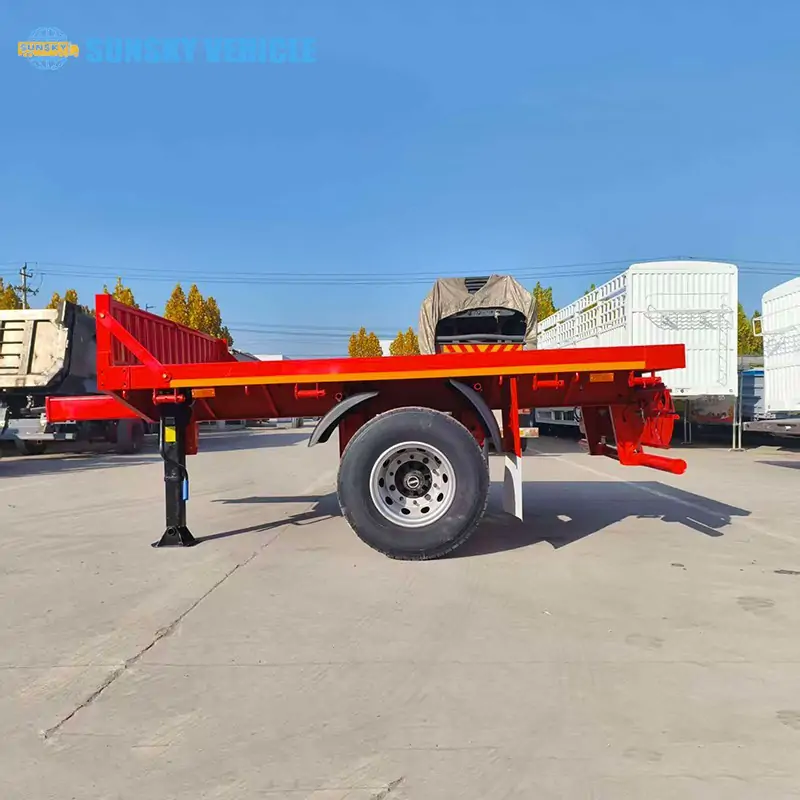

Single Axle Dangler Trailer Image
Single Axle Trailer Specifications
| Item | Specification |
|---|---|
| Overall dimension (L×W×H) | 5360 × 2500 × 2000 mm. |
| Platform size | 4000 × 2500 mm. |
| Payload | 10,000 kg. |
| Tare weight | 2,400 kg. |

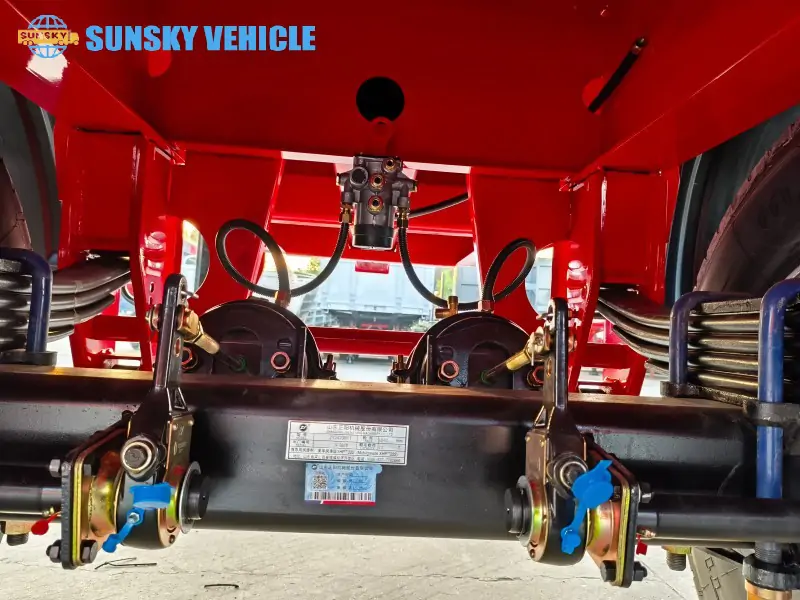

| Axle | Single axle, 13 Tons rating. |
| Suspension | Spring suspension. |

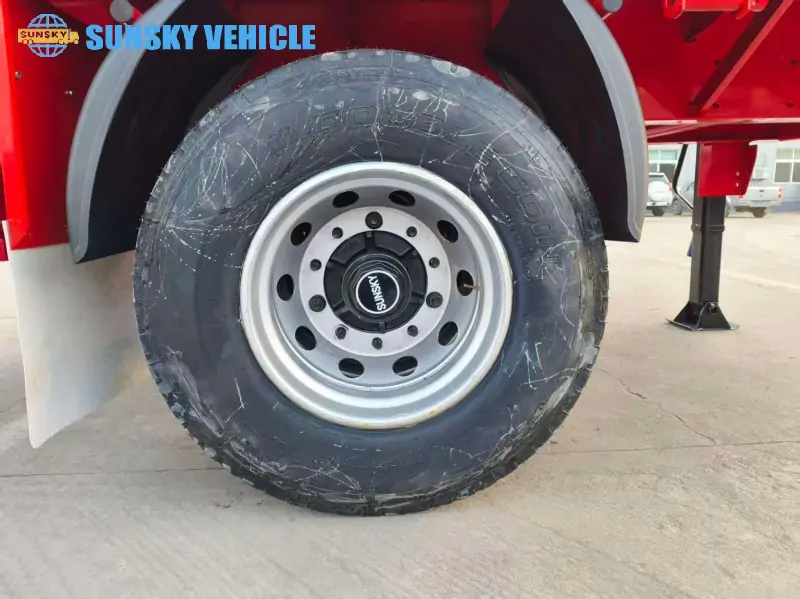

| Tire & rim | Double Coin 12R22.5 / 9.00×22.5. |
| Headboard height | 500 mm (standard). |
| Typical lead time | 30 days |
Applications & Use Cases for Single Axle Dangler Trailer
This trailer fits businesses that need rugged, low-cost bulk transport: small freight operators, farms moving produce, construction sites hauling sand/gravel, and regional logistics in emerging markets (notably East Africa). Its low tare makes it especially attractive where payload revenue per trip matters most.
Why Choose This Single Axle Dangler Trailer
After analyzing market options and removing generic claims, three standout buyer-focused benefits remain:
-
Better payload economics — higher net payload per trip thanks to 2,400 kg tare vs conventional alternatives, lowering per-ton transport cost.
-
Field-proven durability — 13T axle + spring suspension built for rough roads, reducing downtime and maintenance.
-
Fast customization & parts support — optional head wall/side walls, standard tire/axle specs for easy spare parts sourcing in major markets.
Loading, Safety & Maintenance Tips
-
Load distribution: keep center of gravity low with even fore/aft distribution; avoid overhang beyond the 4,000 mm deck.
-
Tie-down points: use the designated anchors and distribute straps evenly to avoid deck stress.
-
Routine checks: inspect axle bearings, tire pressure, and suspension leaves after every 1,000 km under heavy loads to extend service life.
Warranty, Spare Parts & After-Sales Service
We offer clear commitments on: basic structural warranty, parts availability program, and remote troubleshooting to minimize fleet downtime.
FAQ
Q: Is this trailer road legal for export markets?
A: The trailer can be configured to comply with most regional regulations; specify your destination and we’ll confirm local compliance and required options.
Q: Can I order custom head wall heights or side walls?
A: Yes — we provide customization options for headboard height, side walls, and tire/axle specs to match loading needs.
Q: What documents are provided with each trailer?
A: Packing list, commercial invoice, basic maintenance guide, and a certificate of origin; technical manual is available on request.
Ready to compare costs? Submit your load profile and destination for a tailored quote. Prefer to inspect first? Ask about sample units or photo/video of the trailer on a live customer site.
