Description
The 40ft high wall utility trailer is built on a high-tensile steel chassis and reinforced main beams to deliver exceptional strength and longevity. Its high-wall side panels — typically ranging from 600 mm to 1200 mm in height — provide secure load containment and minimize spillage when transporting bulk goods. The use of manganese steel or 16Mn high-tensile plate ensures minimal permanent deformation, even under heavy loads.Advanced suspension options — including leaf spring or air-bag systems — and heavy-duty landing gear ensure the trailer performs reliably on rough terrain and during frequent loading/unloading cycles.

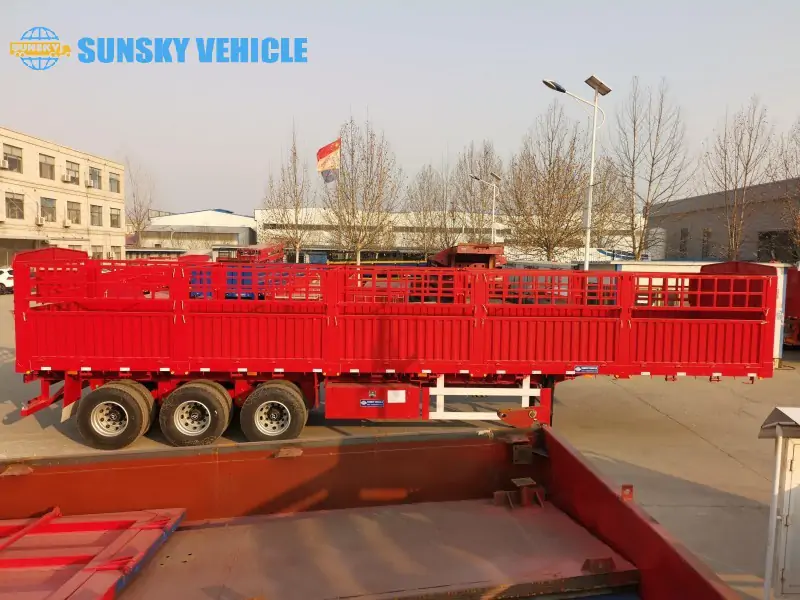

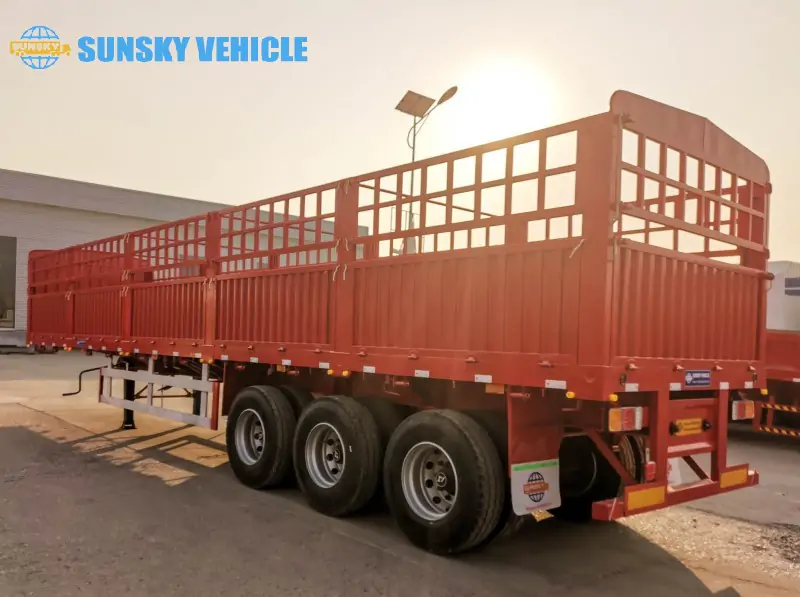

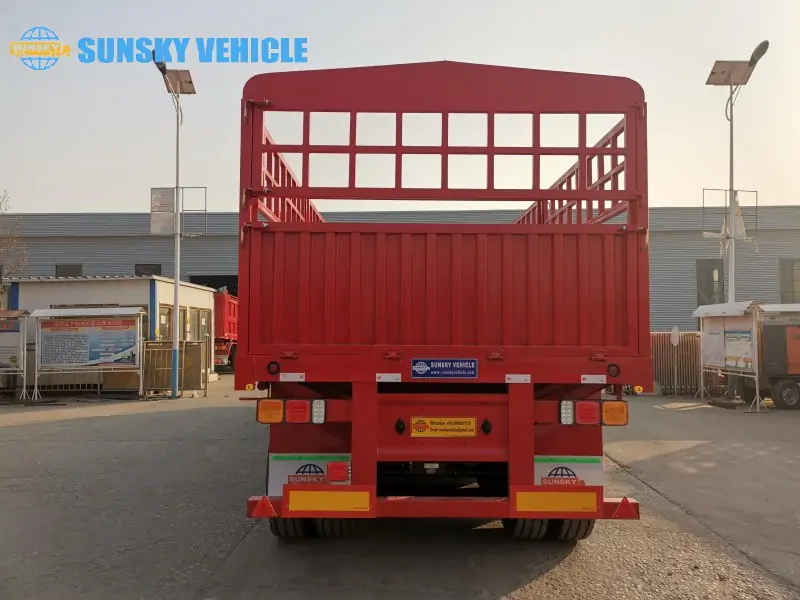

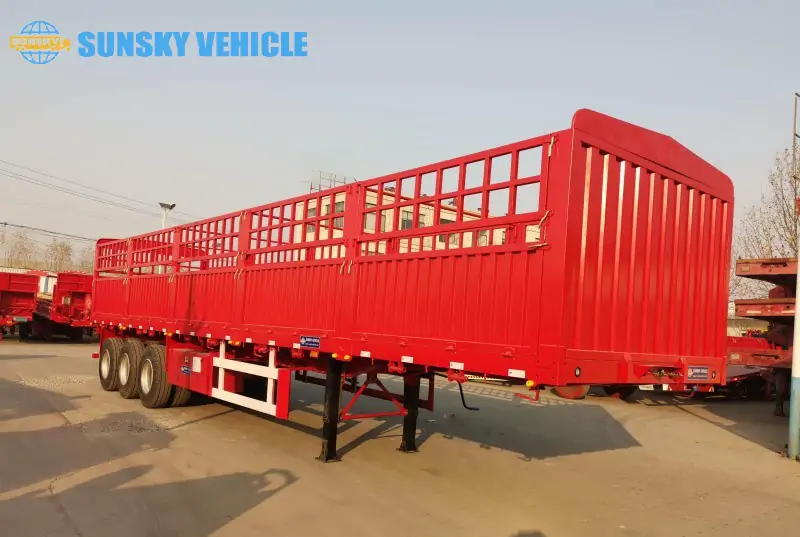

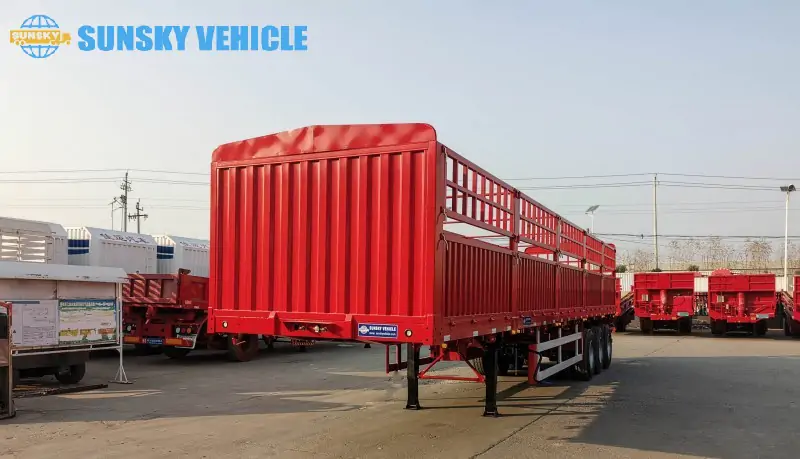

40FT High Wall Utility Trailer Image
Technical Specifications
| Feature: | Carry fresh agricultural products such as vegetable,melon and fruit, and light goods；Carry container |
| Dimension(L*W*H): | 12500x2480x3200mm |
| The Height of Wall | 800mm+600mm |
| The thickness of floor | 3mm |
| No. of axle: | 3X13Ton |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | 8600 |
| Kingpin: | JOST brand bolt-in/welded type 3.5”/2” |
| Step bar | Square tube of 100mm |
| Landing gear: | JOST brand two-speed manual operation 19” |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension: | leafs spring/ Airbag suspension |
| Container locks | 12 sets |
Key Features of the 40 ft High-Wall Utility Trailer
-
High side walls: Available wall heights from 600mm up to 1200mm, ideal for bulky or loose materials.
-
Reinforced loading deck: Checker plate or flat steel deck options, main beam height up to 500mm, optimized for heavy-duty carrying.
-
Heavy load capacity: Designed payloads from 30 tons up to 65 tons (or more depending on configuration).
-
Customizable fit-out: Options for twist locks (for 20ft or 40ft containers), axle configurations (3-axle, 4-axle), suspension types, wall heights, paint colors.
-
Durable finish & protection: Processes like electrophoresis + powder coating deliver superior corrosion resistance and extended service life.
Why Choose Our 40 ft High Wall Utility Trailer Over Conventional Trailers?
Many standard flatbed or low-wall trailers fall short when it comes to bulk cargo containment or rugged conditions. With our high-wall design, you get:
-
Reduced load loss and better containment thanks to taller side walls.
-
Greater flexibility – switching between container hauling and loose materials without changing chassis.
-
Reduced maintenance and downtime – thanks to quality materials and robust construction (for example, bearing units designed for 500,000 km service life under standard load).
-
Custom-fit to your operation — you’re not forced into one rigid spec; you can choose wall height, suspension type, and axle count to match your fleet and terrain needs.
Service & Customisation Options
We understand that fleet operations differ by region, terrain and cargo type — that’s why our 40ft high wall utility trailer offering includes:
-
Custom wall height and panel options to match your cargo profile.
-
Multiple axle and suspension configurations tailored for local road conditions
-
Colour, branding and finish customisation to reflect your fleet image and maintenance plan.
-
After-sales support: local parts supply, spares compatibility, easy maintenance design (such as wheel-bearing units designed for extended service).
-
Flexible shipment: RO-RO, container, bulk carrier options for global delivery.
Ready to upgrade your fleet with a reliable 40ft high wall utility trailer? Contact us today with your required specification: wall height, axle count, suspension type, colour and any additional options. Our team will prepare a tailored quotation, shipping schedule and after-sales plan. Secure your load, reduce downtime, increase versatility — let’s haul smarter.
