Description
Designed for maximum efficiency and stability, our heavy-duty 4-axle pulling trailer with side board is the definitive solution for transporting bulk, general cargo, and containers. With a robust 35-ton payload capacity and a specialized spring suspension system, this trailer is engineered to perform reliably on the most demanding roads. Experience superior load protection and extended service life.

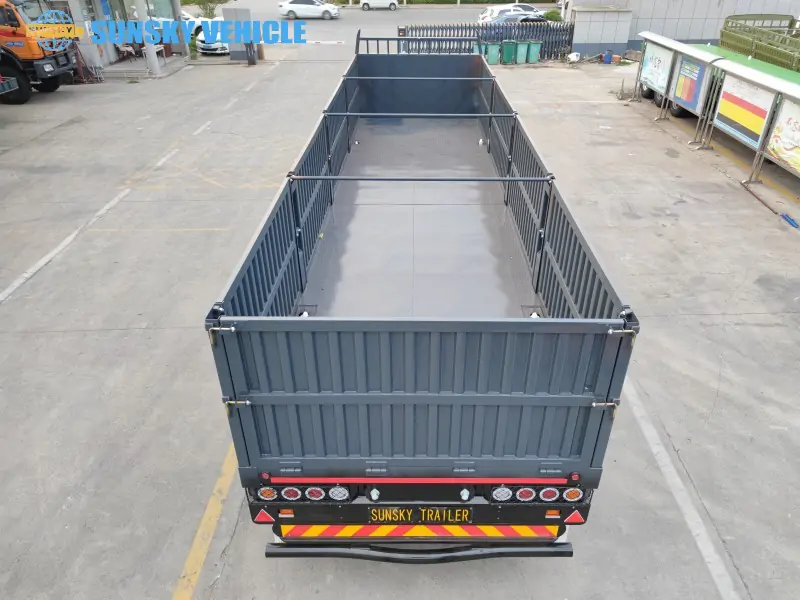

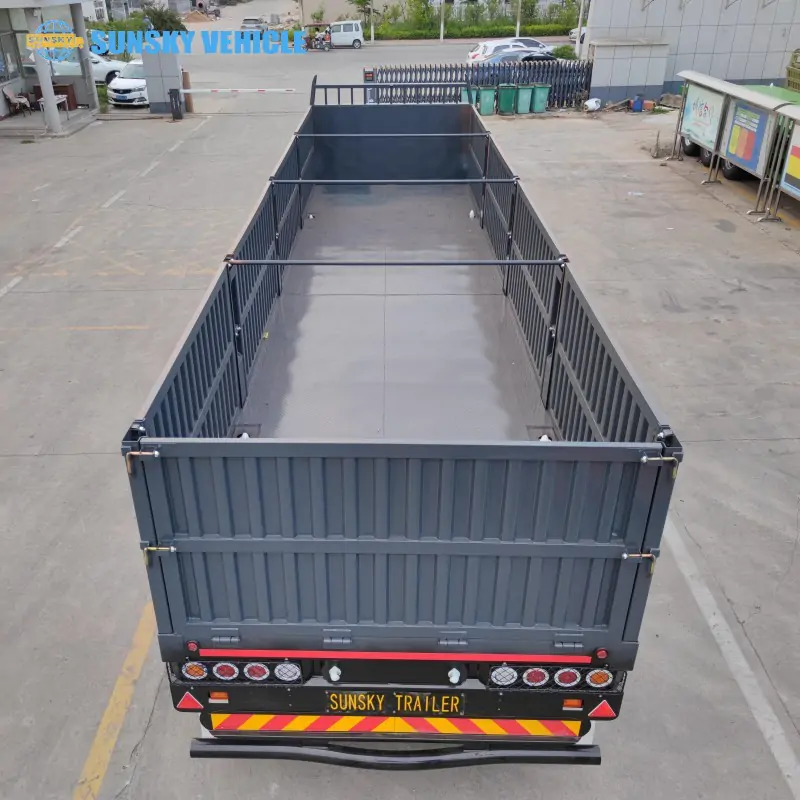

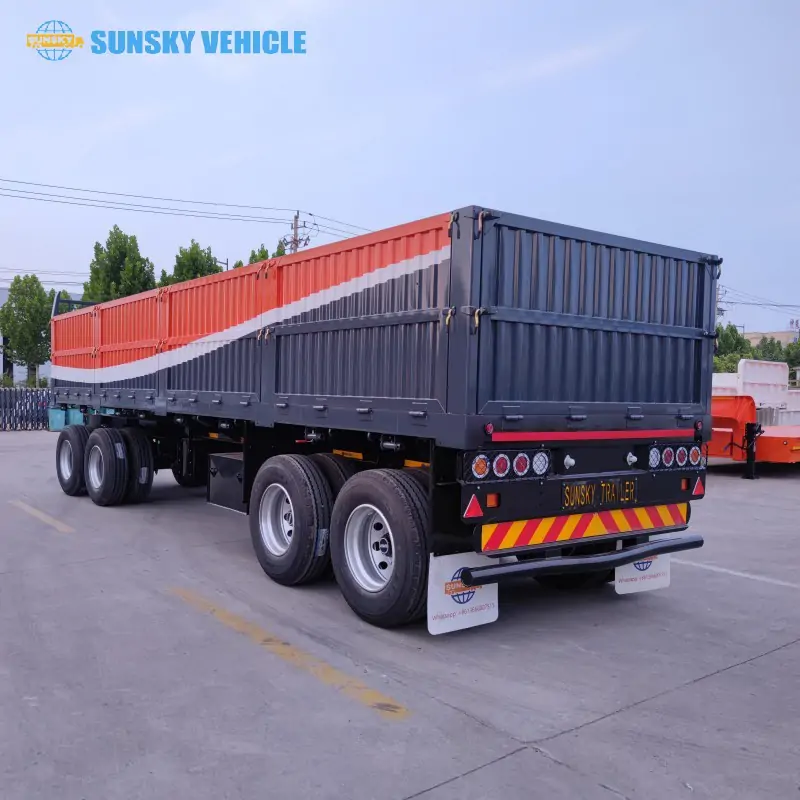

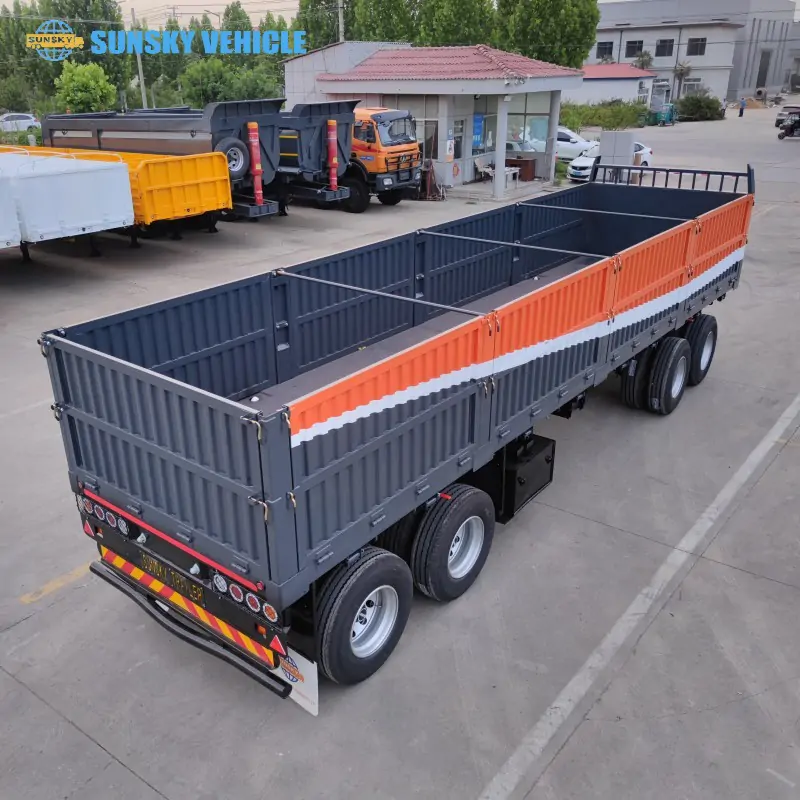

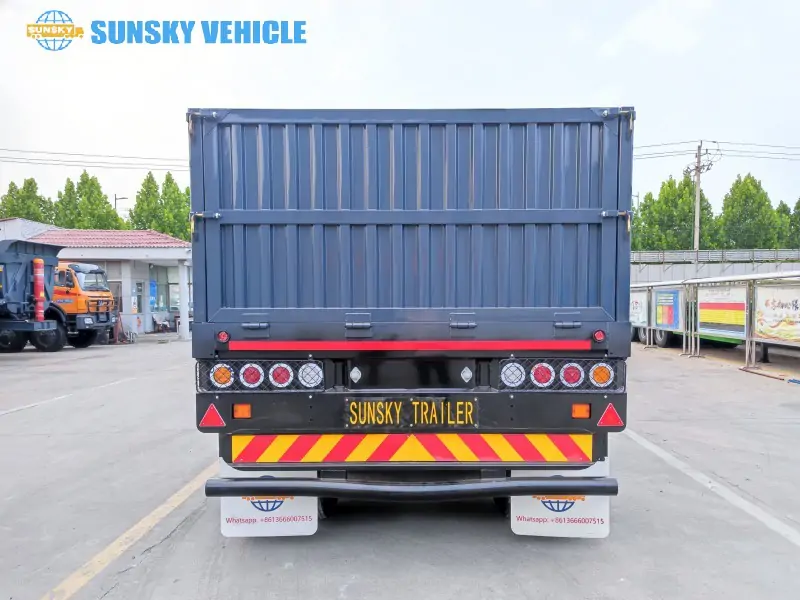

4-Axle Pulling Trailer with Side Board Image
Core Specifications: The Strength Behind Our 4-Axle Trailer

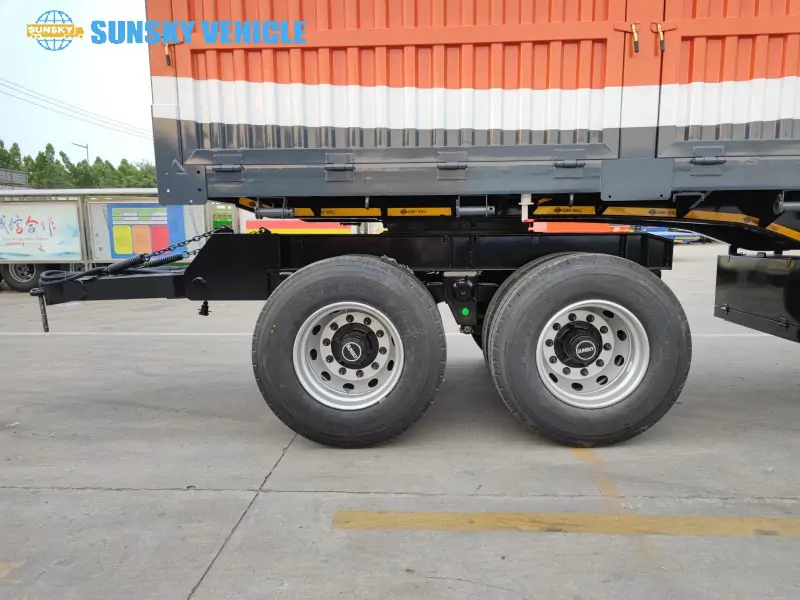

Quality components ensure longevity and safety. We utilize 4 heavy-duty 13-ton axles and a substantial 30-ton turntable, establishing a foundation of unparalleled strength. The heavy-duty spring suspension system is selected for its proven reliability and ability to absorb significant road shock, ensuring the trailer and its cargo remain protected even on rough terrain.
| 4-Axle Pulling Trailer with Side Board SPECIFICATION | |
| Dimension (L*W*H) | 11830*2500*2730 mm |
| Payload Capacity | 35 Tons (77,161 lbs) |
| Axle Configuration | 4 Axles, 13 Tons each |
| Loading Floor Length | 34 ft (Approx. 10.36m) |
| Side Board Height | 1200 mm (Approx. 4ft) |
| Turntable Capacity | 30 Tons |
| Suspension | Heavy-Duty Spring Suspension |
| Tire/Rim Size | 315/80R22.5 / 9.00*22.5 |
| Container Locks | 4 Pcs (for 20ft container hauling) |
Superior Payload and Robust Quad-Axle Drawbar Design
Our trailer is not just a carrier; it’s a strategic hauling asset. The 4-axle pulling trailer configuration is specifically engineered to distribute the 35-ton payload evenly, enhancing stability and reducing stress on the towing vehicle. Unlike semi-trailers, our drawbar design (Pulling Trailer) offers superior maneuverability in confined spaces and facilitates easier coupling/uncoupling, making your logistics operations significantly more efficient. The extra-long 34ft loading floor provides ample space for varied cargo, from agricultural goods to construction materials.
Max-Guard Protection: High Side Board & Container Security
Cargo security is non-negotiable. Our side board pulling trailer features high 1200mm sideboards that provide exceptional lateral containment, crucial for securing loose or bulk materials (a key advantage over simple flatbeds). For mixed-load capabilities, the integration of 4 robust container locks transforms this versatile unit into a dual-purpose hauler, allowing for the safe transport of standard 20-foot containers. This multi-functionality addresses your need for a single, reliable solution for diverse freight requirements.
Safety & Reliability: Designed to Outlast the Competition
We focus on your pain points: downtime and maintenance costs. Our frames are constructed using high-tensile, low-carbon alloy steel, ensuring maximum rigidity and resistance to permanent deformation—a common issue with lesser-quality trailers. While competitors may offer standard steel, our design prioritizes a thicker, more robust structure, backed by years of manufacturing expertise, to deliver a trailer that truly outlasts its competitors. We recommend optional features like a WABCO braking system (as seen in leading brands) and corrosion-resistant treatment to guarantee peak performance and driver safety under all operating conditions.
Ready to Upgrade Your Fleet?
Stop compromising on payload and reliability. Our 4-axle pulling trailer with side board offers the perfect combination of capacity, versatility, and durability. Contact our sales team today to discuss your specific bulk cargo or container hauling needs and receive a detailed quote tailored to your operational requirements.
