Description

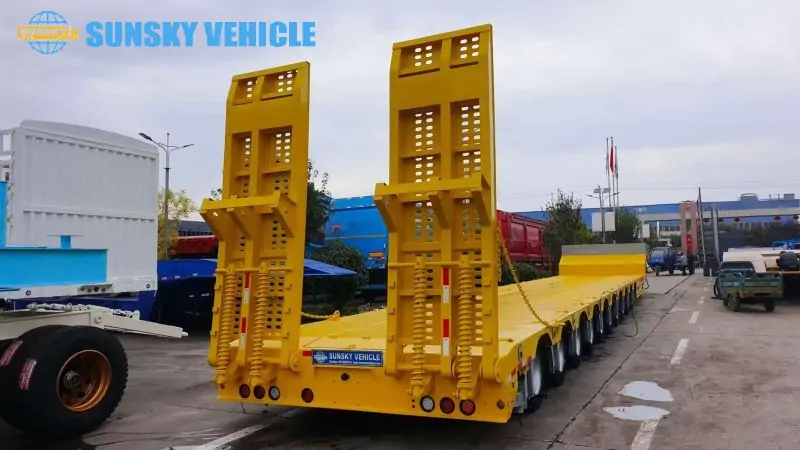

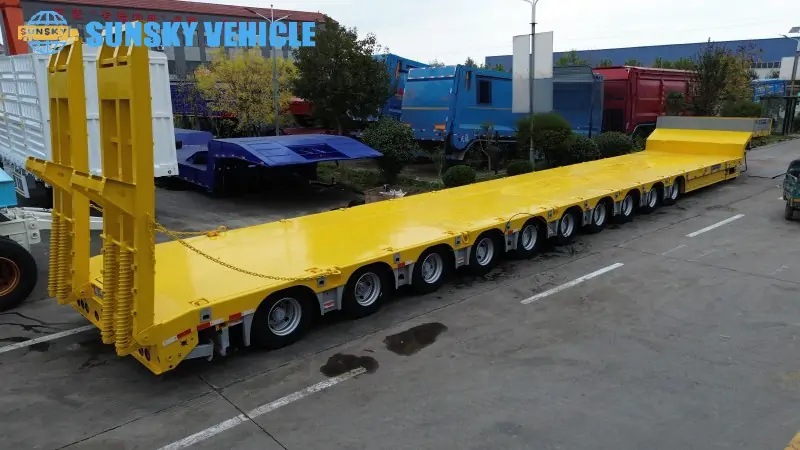

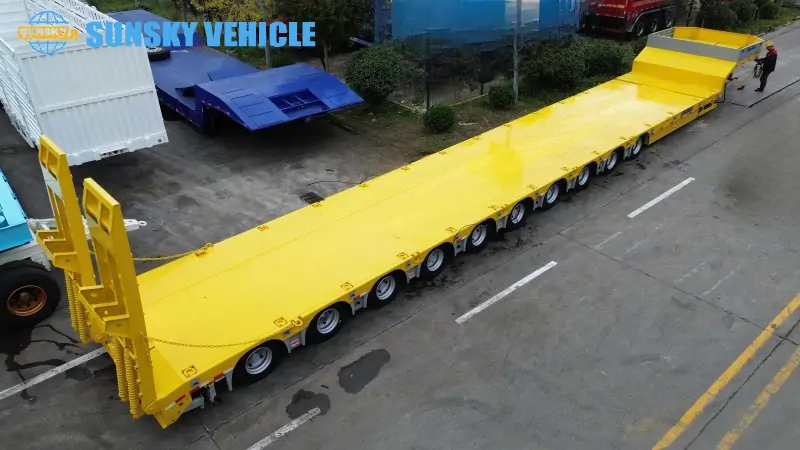

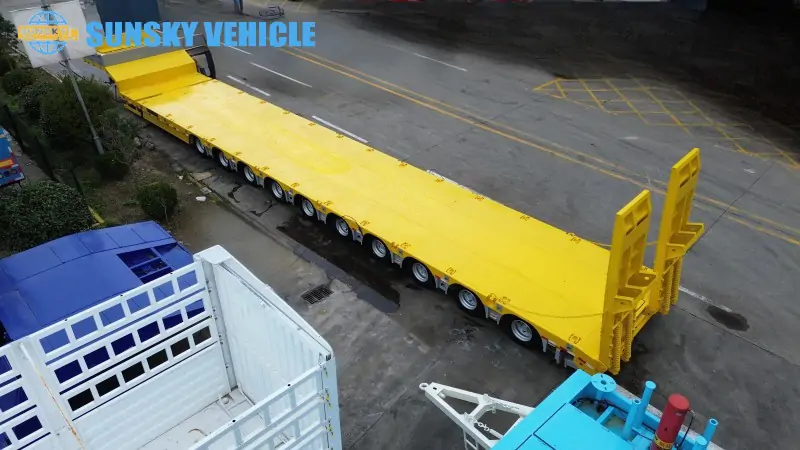

10 Axles Extendable Lowboy Trailer Image
Detailed Specifications
For engineers and project managers, precision matters. Here are the core specifications of our 10 Axle Lowbed Semi-trailer:
| Feature | Specification |
| Model | 10 Axles Lowbed Semi-trailer |
| Payload Capacity | 100,000 kgs (100 Tons) |
| Axle Configuration | 10 Axles (Front 2 and Rear 3 with Lifting/Self-steering) |
| Suspension | Airbag Suspension |
| Platform Length (Extendable) | 18,000mm – 25,000mm (with 2m detachable) |
| Platform Width | 3,000mm – 4,000mm |
| Tare Weight | 28,000 kgs |
| Tires | Double Coin 235/75R17.5 |
| Kingpin | Bolt-in type 2” or 3.5” |
| Ramps | Spring Ramps |
Robust and Durable, Achieve Exceptional Transport Start your project today and get a high-performance semi-trailer solution tailored specifically to your unique needs.
The Extendable Lowboy Trailer Advantage
When standard trailers fall short, you need the power and flexibility of a multi-axle system. Our 10 Axles extendable lowboy trailer is specifically designed to address the challenges of moving massive, non-divisible loads—like heavy construction machinery, industrial modules, or wind turbine components. With a maximum payload of 100,000 kgs (100 Tons), it dramatically reduces the number of trips required, cutting down on logistics costs and project timelines.
Self-Steering and Lifting Axles
Maneuverability and tire wear are critical pain points for large trailers. We solved this with an advanced Airbag suspension system.
- Self-Steering: The front two and rear three axles are equipped with self-steering capability, significantly reducing tire scrubbing and wear during tight turns, which is a major operational saving for multi-axle trailers.
- Lifting Function: These five axles also feature a lifting function, allowing you to optimize tire contact and fuel efficiency when running empty or with a lighter load.
- Premium Components: The entire system relies on a solid 28,000 kgs Tare weight structure and high-quality Double Coin brand 235/75R17.5 tires for maximum reliability.
Oversized Cargo Platform Dimensions
Oversized loads require an adaptable platform. The standard dimensions of this trailer are 2125030003450mm, but its true strength lies in its modular design:
- Extendable Length: The cargo platform length is fully adjustable, ranging from 18000mm to a maximum of 25000mm with a 2-meter detachable section. This extension capability provides the critical space needed for exceptionally long cargo.
- Adjustable Width: Furthermore, the cargo platform width is flexible, accommodating loads from 3000mm up to 4000mm, ensuring compliance and safety for wide equipment.
Solve Your Biggest Hauling Challenges Today
Are you struggling to find a legal, heavy-duty solution that can handle both the weight and the length of your largest equipment? Stop compromising on safety or efficiency. Our heavy-duty 10 axle low loader is the tailored solution that eliminates permit complexity and ensures smooth, reliable transport for your most valuable assets.
Ready to transport your 100-ton cargo with confidence?
Click here to request a detailed quote and discuss your specific extendable lowboy trailer requirements.
