Equipment Trailer Manufacturer for Heavy Equipment Transport

A machinery trailer is designed to transport construction machinery, agricultural equipment, industrial machinery, and other heavy loads that cannot be transported efficiently with standard cargo trailers. Common applications include excavator transport, bulldozer transport, wheel loader transportation, tractor hauling, and industrial equipment delivery.

Depending on the load, machinery trailers may use flat decks, low decks, loading ramps, reinforced floors, and multiple axles to provide safe and stable transportation.

A lowbed or lowboy trailer is commonly used for transporting excavators because its low deck height helps reduce the overall transportation height and makes loading heavy machinery easier.

The appropriate configuration depends on the excavator's operating weight, dimensions, track width, and loading requirements. Larger excavators may require heavy-duty lowbed trailers with additional axles and reinforced structures.

A flatbed trailer has a relatively high and open loading platform and is commonly used for general cargo, machinery, steel, and construction materials.

A lowbed trailer has a lower deck height and is specifically designed for transporting tall and heavy machinery. The lower platform reduces overall cargo height and improves stability during heavy equipment transportation.

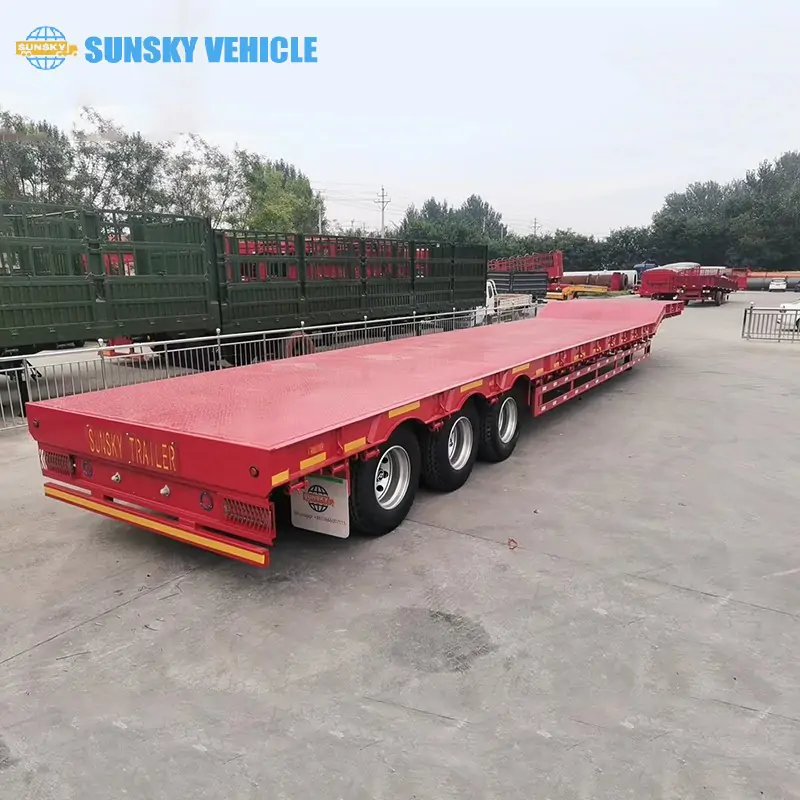

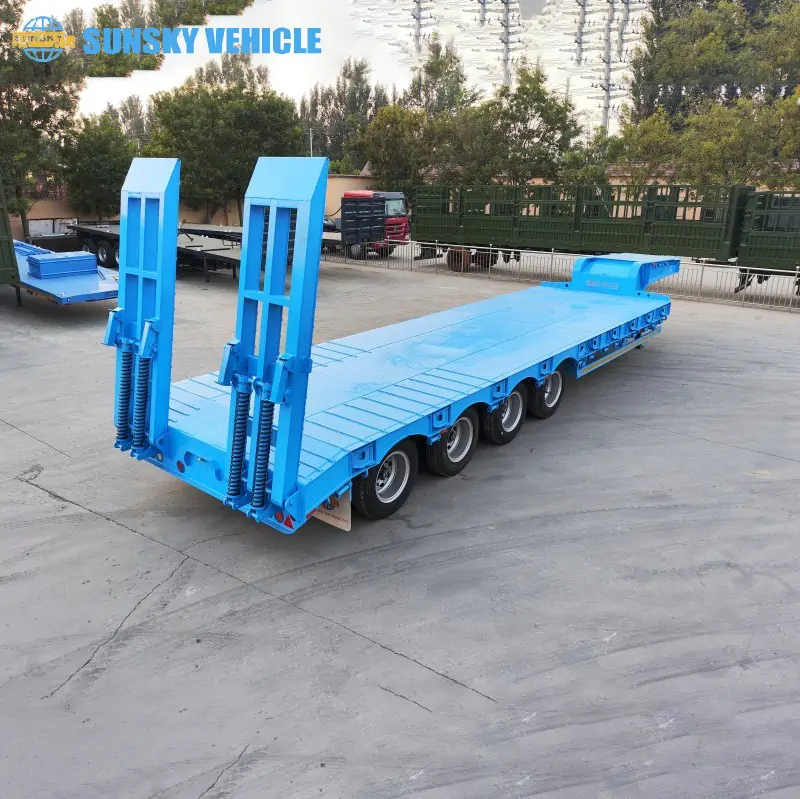

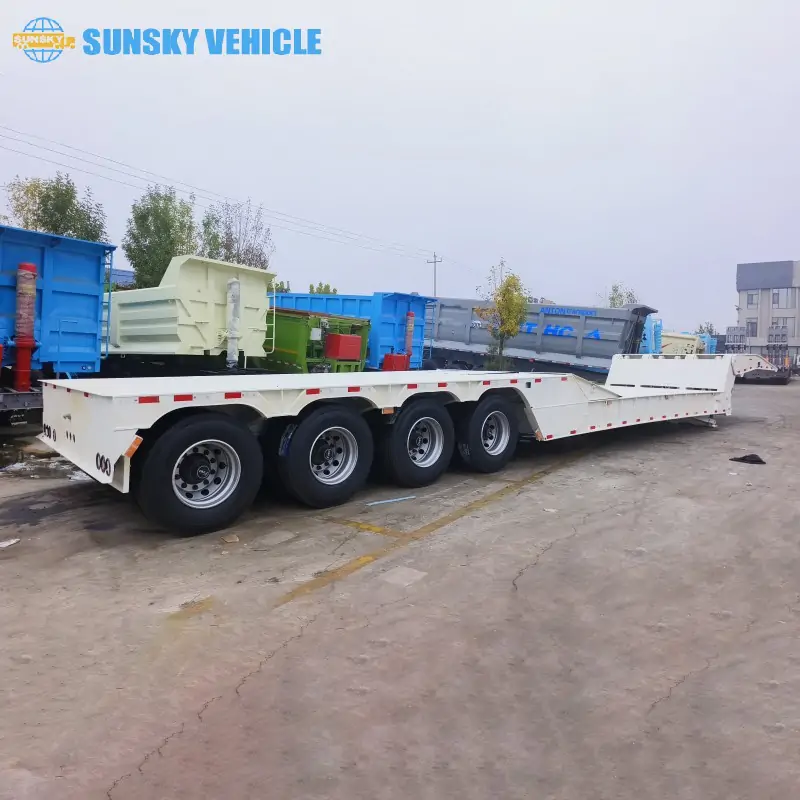

A lowboy is a heavy-duty trailer commonly used to transport construction machinery and other oversized equipment. It normally has a fixed structural configuration.

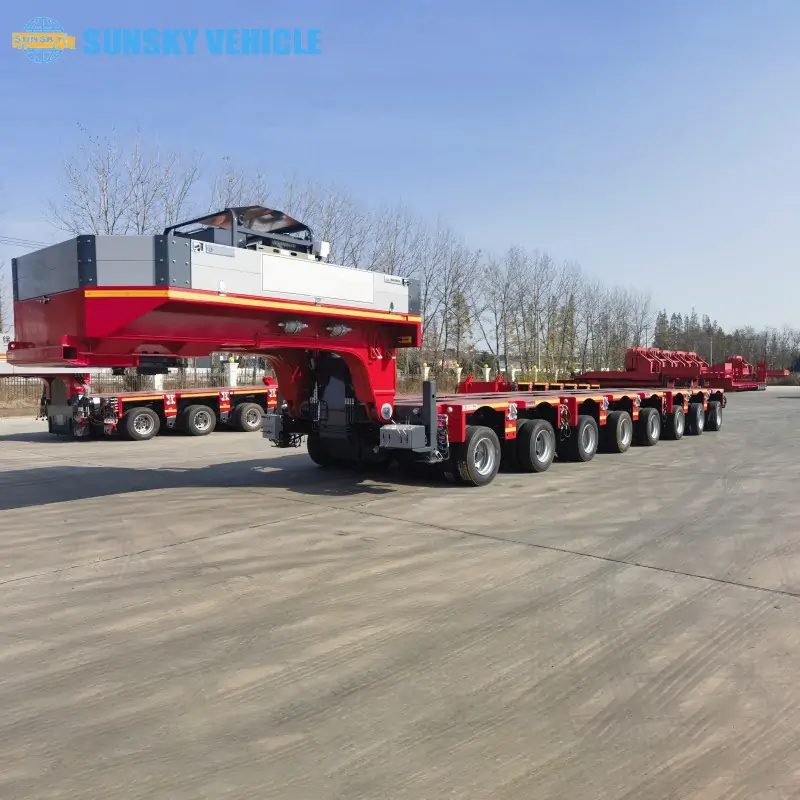

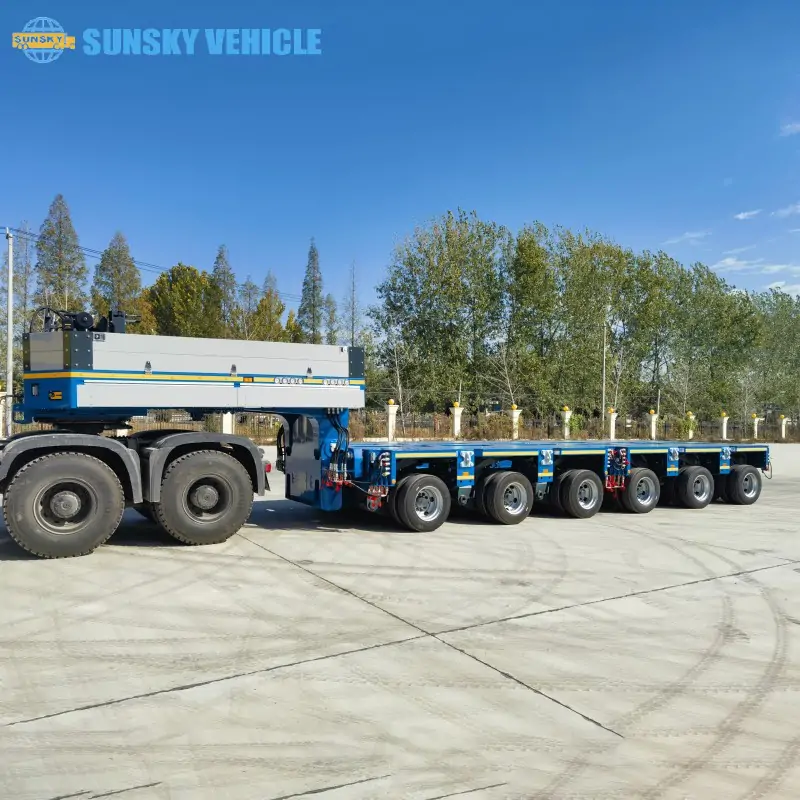

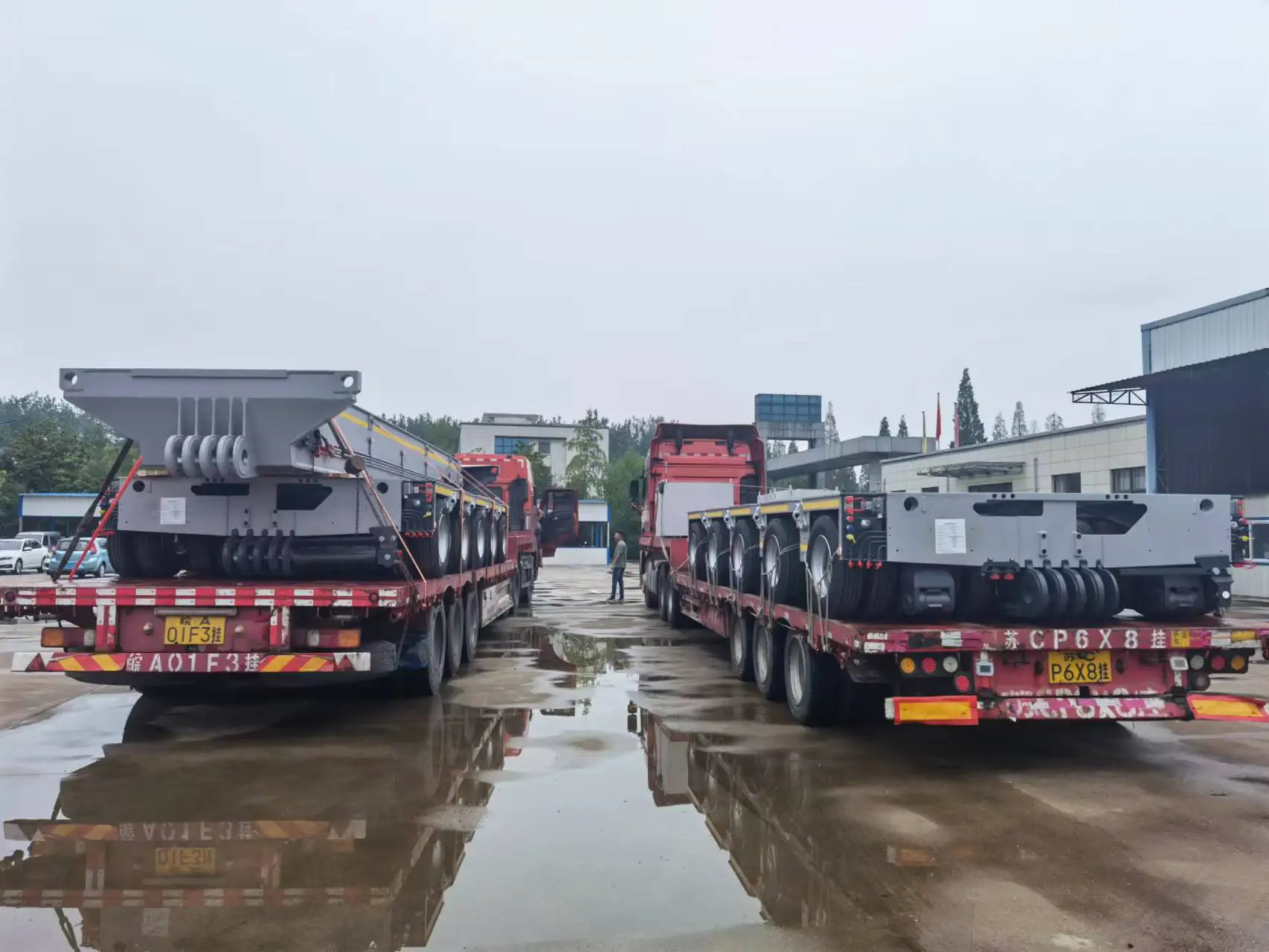

A modular trailer uses separate axle modules that can be combined into different configurations. This allows hydraulic modular transporters to handle extremely heavy and oversized loads that exceed the capacity of conventional lowboy trailers.

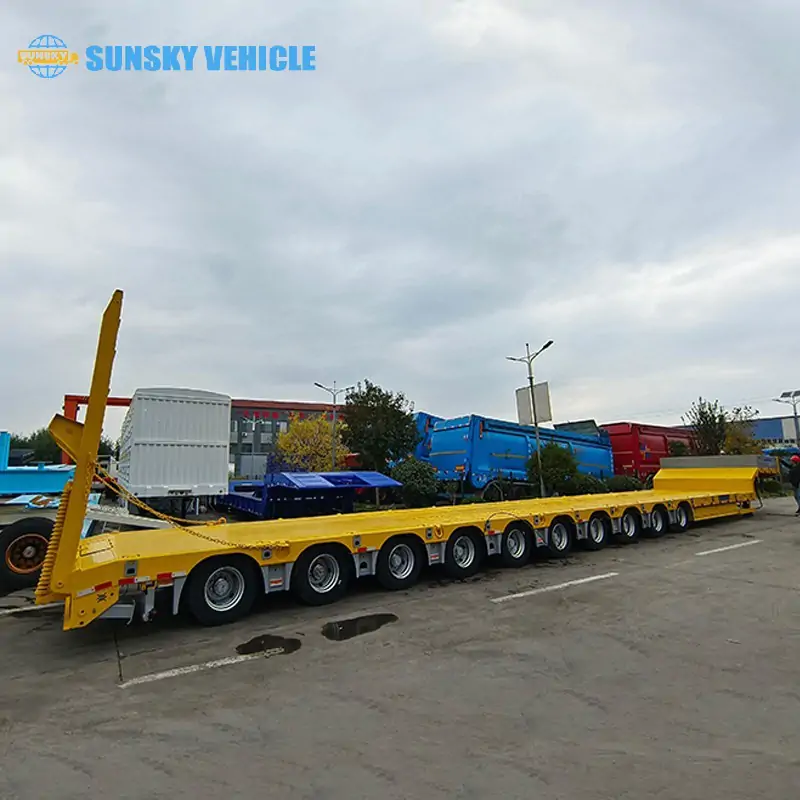

Oversized construction equipment may require a lowbed trailer, extendable trailer, or hydraulic modular trailer depending on its weight and dimensions.

For long loads, an extendable platform can provide additional deck length. For extremely heavy equipment, modular axle configurations can distribute the load across more axles and provide greater payload capacity.

Heavy haul trailer capacity depends on the number of axles, axle load rating, frame strength, suspension system, and applicable road regulations.

Standard heavy-duty configurations may transport tens of tons, while specialized lowbed and hydraulic modular systems can be engineered for loads of 50 tons, 80 tons, 100 tons, or significantly more.

The actual payload should always be determined according to the trailer's technical design and the regulations of the destination market.

Trailer dimensions should be selected according to the machinery's overall length, width, height, operating weight, wheelbase, and loading method.

Compact machinery may be transported using a standard flatbed or machinery trailer, while large excavators, bulldozers, and wheel loaders may require longer and wider lowbed configurations.

Providing the manufacturer's exact equipment dimensions is the best way to determine the appropriate trailer length, width, deck height, and axle configuration.

A drop deck trailer provides a lower loading platform than a conventional flatbed trailer, allowing taller cargo to be transported while maintaining acceptable overall vehicle height.

Drop deck trailers can be suitable for construction machinery, agricultural equipment, industrial machinery, and other tall loads. They provide a useful balance between loading height, cargo capacity, and transportation flexibility.

Yes. Custom machinery trailers can be engineered according to the weight, dimensions, center of gravity, loading method, and operating conditions of the equipment.

Common customization options include trailer length and width, deck height, axle configuration, suspension, loading ramps, hydraulic systems, braking systems, tie-down points, and reinforced flooring.

Custom design is particularly useful when transporting oversized machinery or equipment with non-standard dimensions.

The price of a heavy equipment trailer depends on its payload capacity, dimensions, axle configuration, suspension, structural steel, braking system, ramps, hydraulic components, and customization requirements.

A standard machinery trailer will generally cost less than a heavy-duty lowbed or hydraulic modular transporter. International buyers should also consider shipping, insurance, import duties, and local compliance costs.

For an accurate quotation, provide the machinery weight, dimensions, destination country, required payload, and preferred trailer configuration.

When selecting a manufacturer, buyers should evaluate manufacturing experience, engineering capability, production capacity, structural quality, axle and suspension options, customization ability, quality inspection procedures, certifications, export experience, and after-sales support.

For heavy machinery transportation projects, an experienced manufacturer should also be able to provide technical drawings, customized specifications, loading solutions, and recommendations based on the actual equipment being transported.

Chinese trailer manufacturers can offer competitive factory-direct pricing, large-scale production capacity, flexible customization, and a broad range of heavy-duty transportation solutions.

Experienced Chinese factories can manufacture flatbed, lowbed, lowboy, drop deck, extendable, and modular trailer configurations for different applications and markets. Buyers should evaluate manufacturing capability, quality control, engineering support, export experience, and after-sales service rather than choosing a supplier based on price alone.
