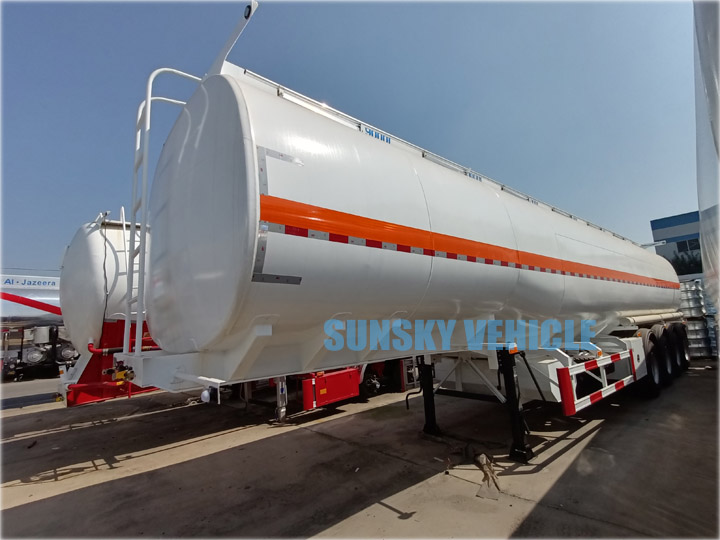

This is a large cubic fuel tanker semi-trailer with a capacity of 54m³, divided into six compartments, which can be used to transport a variety of liquids at one time. It can be used to ship fuel, petrol, water, palm oil, bitumen asphalt, etc.

The fuel tanker trailer transporting oil can effectively improve transportation efficiency. Reduce transportation cost and save fuel consumption.

Fuel tanker trailer tank body

1. the tank is made of 4mm or 6mm high quality carbon steel according to the national standard manufacturing, shape can be made into oval or square shape tank, can hold 6 kinds of oil products. Compartment number can be customized. Also can produce heat preservation series tank.

2. the tank body is equipped with multiple anti-wave dividers. The use of high pressure gas leakage detection, so that the tank has high strength, stable center of gravity, safe and stable vehicle transport characteristics.

3. according to the use of tanker trailer, can choose centrifugal pump, gear pump, stainless steel pump, with large flow, suction speed and other characteristics.

4. single counting method for tank trucks, double count flow meter, can also be assembled tax control computer refueling machine, install 10-15 meters automatic retractable coil, with refueling gun. Edible oil can choose edible oil computer meter to measure.

⬛Specification

Dimensions(mm): 9500-13000*2500*3900mm ( can be customized )

Load capacity(kgs): 54000

Compartment Number: 6

Effective Cubage: 54,000 liters

Axle: BPW Brand 13 tons,4 axles

Suspension:  spring or airbag( can be customized )

Type of landing legs: JOST 19"

King pin: JOST 3.5“ bolt-in

Tire: 315/80R22.5

Rim: 9.00*22.5

Braking system: Two of Wabco Re-6 relay valve,4 units of MBA T30/30 spring chamber

4S/2M ABS system

Manhole: Φ500

Discharge valve: 4pcs of 3”

Discharge system: pneumatic operating

Discharge horse: 2x6m

Bottom valve: 4 pcs
